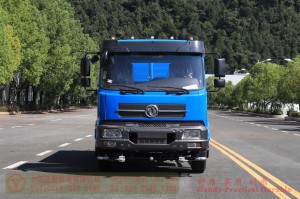

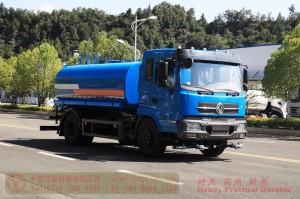

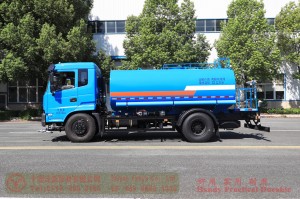

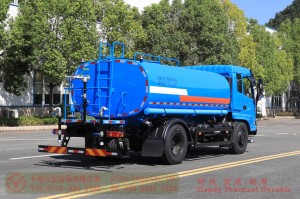

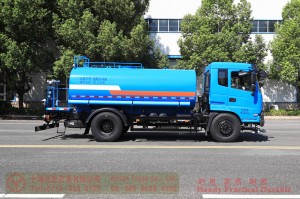

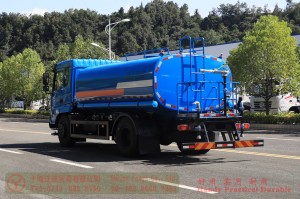

12 square volume green sprinkler truck – Dongfeng 4*2 sprinkler truck – 210 hp water tanker truck production and export manufacturers
Product Description
Sprinkler is also known as sprinkler, multifunctional sprinkler, landscaping sprinkler, water tanker, water truck. Sprinkler is suitable for all kinds of road washing, trees, green belts, lawn greening, roads, factories and mines construction construction, high altitude building washing. It has the functions of water sprinkling, dust suppression, high and low level spraying, pesticide spraying, guardrail rinsing, etc. It also has the functions of water transportation, drainage and emergency fire fighting.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×2 |
| Engine | Cummins ISDe210 30 |
| Gearbox | Mechanical Manual six speed |
| Cab | Dongfeng Flathead row half |
| Axle | Max. Load 5Tons/10Tons (Front/Rear) |
| Frame | 860×250 |
| Suspension | Steel plate spring 7/8+10 pieces |

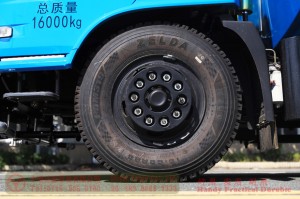

| Tyre | 10.00R20 (10 + 1) |

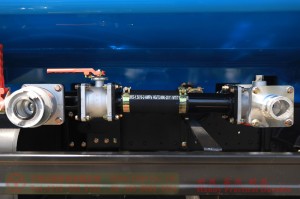

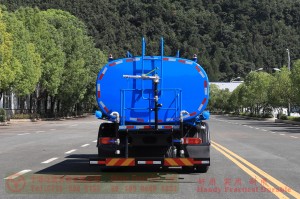

| Other | Pump in and pump out, front flush, rear sprinkler, side spray, tail platform with high pressure water gun. Anti-corrosion treatment inside the tank. |
| Performance Parameter | |||
| Overall Dimension (mm) | 7900× 2525 × 3060(Length×Width×Height) | ||
| Tank Volume (m³) | 12 | ||
| Total Mass(kg) | 15000 | Curb Weight(kg) | 6950 |
| Max. Power(kW/rpm) | 155 | Max. Torque(N.m) | 800 |
| Wheelbase(mm) | 3950 | Displacement(L) | 6.7 |
| Approach Angle (°) | 22 | Departure Angle (°) | 15 |
| Ground Clearance(mm) | 280 | Fording depth (mm) | 480 |
| Axlebase(mm) | 1960/1860 | Tank Capacity(L) | 160 |
| Max. Speed(km/h) | 90 | ||
This parameter is for reference only. The margin of error is plus or minus three percentage points.
