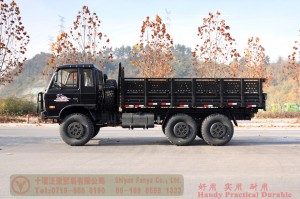

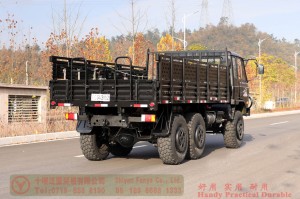

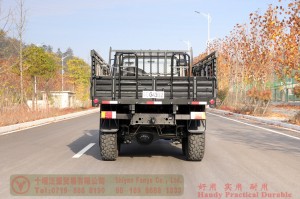

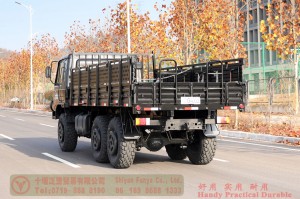

190 HP Flathead Diesel Off-road Truck–Dongfeng 6*6 Troop Carrier for civilian export–EQ2102 Dongfeng 6-wheel-drive Semi-Off-road Truck
Product Description

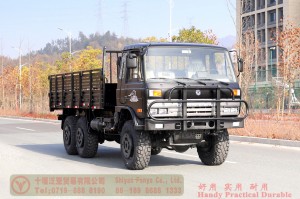

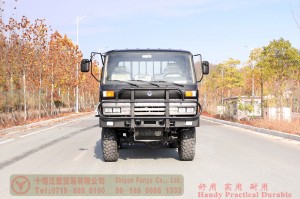

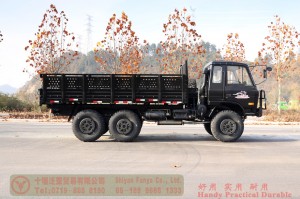

Flathead row and a half 6×6 off-road vehicle, Cummins 190 hp supercharged intercooled diesel engine, 12.5R20 wider off-road tires, 6-speed mechanical transmission, front and rear axle drive, anti-aircraft lamps, sub-fuel tanks, oil drums, water buckets, toolboxes, and other military add-ons, and with shed poles and tarpaulin, (with optional winch).
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins B190 33 |
| Gearbox | Mechanical Manual six speed |
| Transfer case | High-low speed |

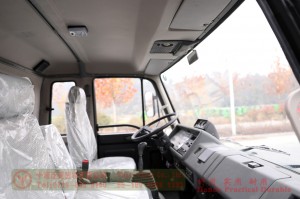

| Cab | Dongfeng 153 One and a half row Cab |
| Axle | Max. Load 3.6Tons/3.6Tons/3.6Tons (Front/Middle/Rear) |

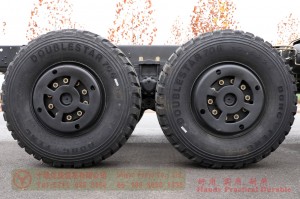

| Tyre | 12.5R20 (6 + 1) |
| Performance Parameter | |||
| Overall Dimension(mm) | 7760 × 2470 × 2740(Length×Width×Height) | ||
| Cargobox Dimension(mm) | 4800 × 2294 × 900(Length×Width×Height) | ||
| Total Mass(kg) | 10435 | Curb Weight(kg) | 6725 |
| Max. Power(kW/rpm) | 140 | Max. Torque(N.m) | 560 |
| Wheelbase(mm) | 3475+1250 | Displacement(L) | 5.9 |
| Approach Angle (°) | 35 | Departure Angle (°) | 34 |
| Ground Clearance(mm) | 315 | Axlebase(mm) | 1876/1870/1870 |
| Min. turning diameter(mm) | 1880 | Max. Climbing Degree(％) | 60 |
| Max. Speed(km/h) | 90 | Tank Capacity(L) | 145+70 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
