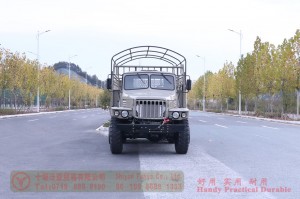

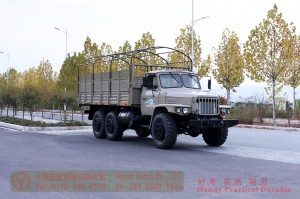

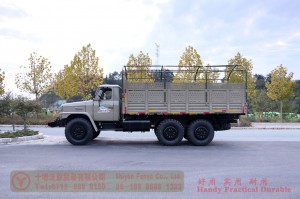

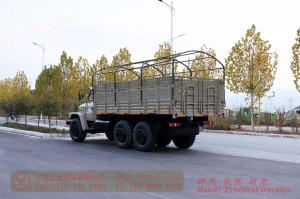

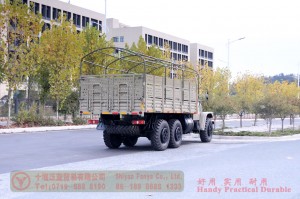

210 HP Long Head Truck with Canopy Bar -Dongfeng All-Wheel Drive 2100 Off-Road Transportation Truck – EQ245 Off-Road Special Purpose Vehicle
Product Description

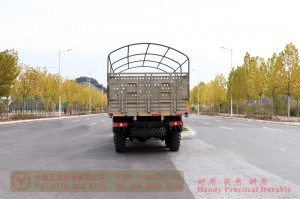

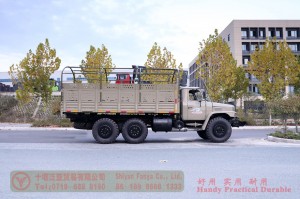

The EQ2100 is a classic old model developed by Dongfeng in the last century, but it is still a popular model for export. In some developing countries, the public facilities are backward, the road surface is poor, the vehicle on the road has certain requirements for off-road driving, this six-wheel drive truck can meet the local needs, the vehicle is installed in the cargo box with folding seats, not only can transport goods, but also transport personnel, the rear of the cargo box with a ladder, easy to get on and off the personnel and cargo loading and unloading. It comes with special accessories such as tarpaulin poles, oil drums and water buckets.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins B210 33 |
| Gearbox | Mechanical Manual six speed |
| Transfer case | High-low speed |

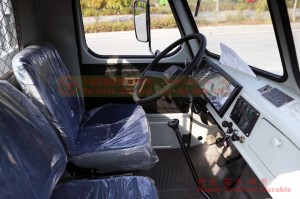

| Cab | Dongfeng pointed single row |
| Axle | Max. Load 3.5Tons/3.5Tons/3.5Tons (Front/Middle/Rear) |
| Suspension | Steel plate spring 9/12 pieces |
| Frame | 860*232mm |
| Tyre | 12R20 (6 + 1) |
| Optional | Air conditioning, winch, brake cooling tanks |
| Other | Buckets, oil drums, fire extinguishers, vehicle tools, tarpaulin poles |
| Performance Parameter | |||
| Overall Dimension(mm) | 8009 × 2520 × 2760(Length×Width×Height) | ||
| Cargobox Dimension(mm) | 4800 × 2300 × 1150(Length×Width×Height) | ||
| Total Mass(kg) | 10800 | Curb Weight(kg) | 6350 |
| Max. Power(kW/rpm) | 140 | Axlebase(mm) | 1960/1960/1960 |
| Wheelbase(mm) | 3650+1230 | Displacement(L) | 5.9 |
| Approach Angle (°) | 30 | Departure Angle (°) | 18 |
| Ground Clearance(mm) | 310 | Parked Slope (％) | 40 |
| Carrying Capacity(kg) | 3500 | Maximum Climbing Degree(％) | 60 |
| Max. Speed(km/h) | ≥87 | Tank Capacity(L) | 300 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
