Product Description

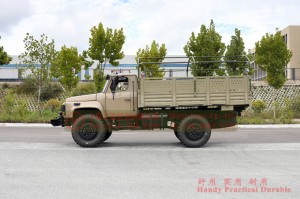

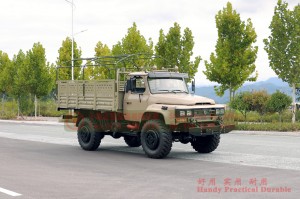

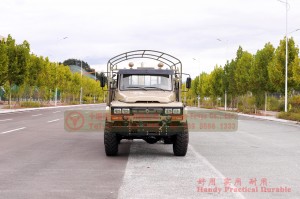

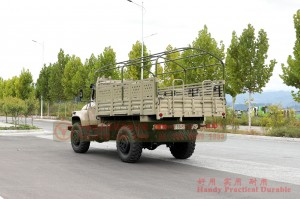

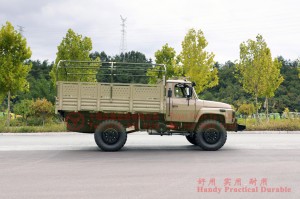

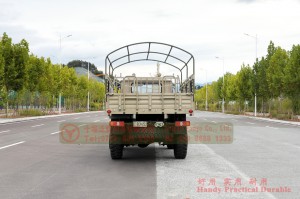

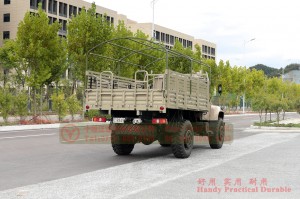

The 4*4 long-headed off-road special vehicle adopts Dongfeng 240 pointed cab, the axle adopts the special bridge for military vehicles, each axle can carry 3.5 tons in off-road condition, and is installed with a front winch, which is a customized off-road type export truck.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | Cummins B190 33 |
| Gearbox | Manual five speed |
| Transfer case | High-low speed |

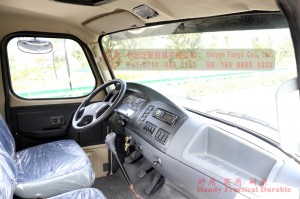

| Cab | Dongfeng 240 tip single row |

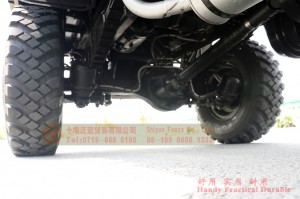

| Axle | Max. Load 3.5Tons/3.5Tons (Front/Rear) |
| Tyre | 12R20 (4 + 1) |
| Frame | 860*160mm, thickness 8mm |
| Suspension | 9/10 |
| Circuits | 24V circuit system |
| Other | Heating and cooling air conditioning, power take-off |
| Performance Parameter | |||
| Overall Dimension(mm) | 6131 × 2190 × 3360(Length×Width×Height) | ||
| No. of members | 3 | ||
| Total Mass(kg) | 7910 | Curb Weight(kg) | 4270 |
| Max. Power(kW/rpm) | 140 | Max. Torque(N.m) | 640 |
| Wheelbase(mm) | 3430 | Displacement(L) | 5.9 |
| Approach Angle (°) | 27 | Departure Angle (°) | 28 |
| The upper plane of the rear end of the frame is off the ground(mm) | 1180 | Climbing degree(％) | 60 |
| Ground Clearance(mm) | 515 | Fording depth (mm) | 1280 |
| Max. Speed(km/h) | 85 | Tank Capacity(L) | 210 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
