4*4 Tipsy Off-Road Vehicle Class III Chassis – 4 wheel drive 16T Customized Special Purpose Vehicle Chassis – Professional Design Auto Chassis Factory
Product Description

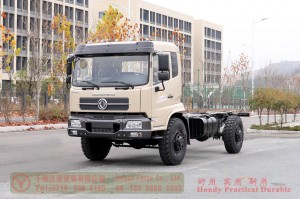

The 4*4 tip off-road vehicle class III chassis is a chassis model designed one-to-one by our company according to the customer’s requirements. After multi-faceted design, testing and perfecting, the chassis’ passability reaches the customer’s indexes. The chassis cab and top load are perfected by customers themselves, and will be exported to Africa for use.
Product Parameter
| Basic Configuration | |
| Engine | Cummins 300hp |
| Gearbox | Mechanical Manual six speed(Allison automatic optional) |
| Axle | Max. Load 6Tons/10Tons (Front/Rear) |

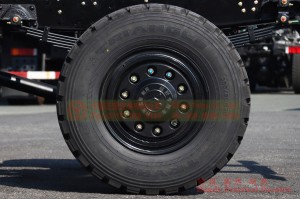

| Tyre | 365/80R20 (4 + 1) |

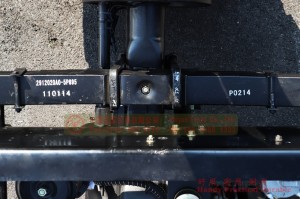

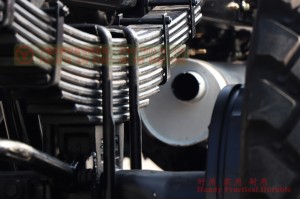

| Frame | Steel plate springs 9/10 |
| Circuit | 24V circuit system |
| Performance Parameter | |||

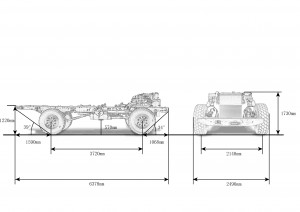

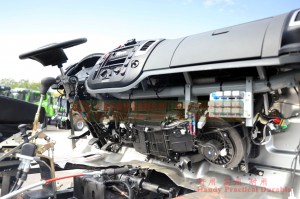

| Type III chassis dimensions (including instrument panel)(mm) | 6378 × 2490 × 2080(Length×Width×Height) | ||
| The upper plane of the rear end of the frame is off the ground(mm) | 1220 | ||
| Axlebase(mm) | 3720 | Wheelbase(mm) | 2140/2140 |
| Total Mass(kg) | 16000 | Curb Weight(kg) | 4390 |
| Max. Power(kW/rpm) | 232 | Type III chassis axle load (empty)(kg) | 2490/1900 |
| Minimum Turning Diameter(m) | 13.2 | Displacement(L) | 8.9 |
| Approach Angle (°) | 34 | Departure Angle (°) | 39 |
| Ground Clearance(mm) | 320 | Fording depth (mm) | 700 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
