4WD Iveco short head double row minivan-3 tons of small 6-passenger off-road truck-classic Iveco 2045 conversion model
Product Description

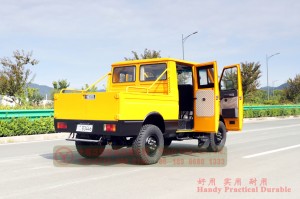

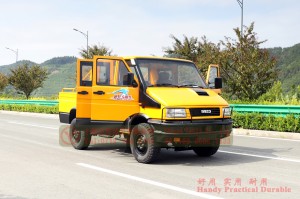

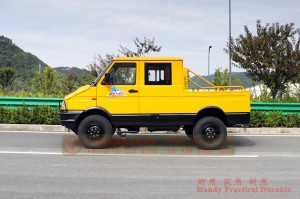

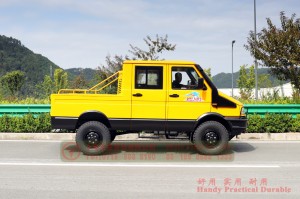

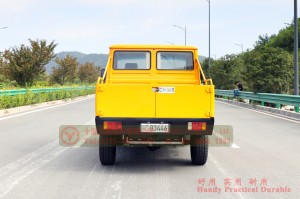

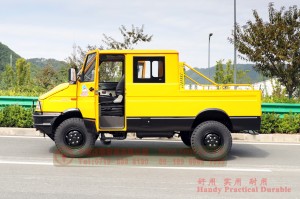

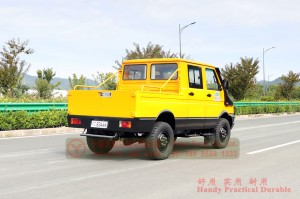

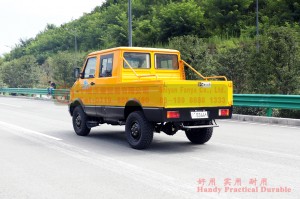

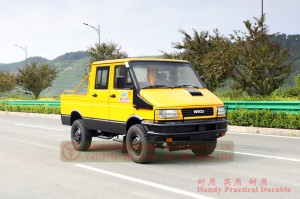

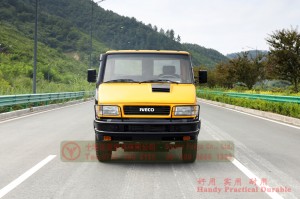

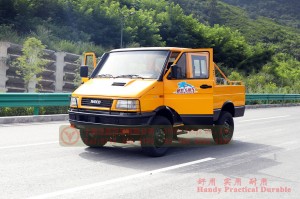

4 wheel drive Iveco short head double row minivan is modified by our company on the basis of Iveco 2045, double cab can carry 6 people, rear space of 3 square meters, can carry 3 tons of cargo, the floor is equipped with ground anchor hooks, can be fixed cargo use.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | SOFIM8142.43 |
| Gearbox | Mechanical Manual five speed |
| Transfer case | High-low speed |
| Cab | Iveco short head double row (with air conditioning, can carry 6 persons) |
| Axle | Max. Load 2.5Tons/3.3Tons (Front/Rear) |

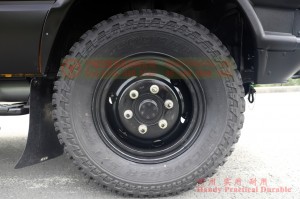

| Tyre | LT255/85R16 (6 + 1) |
| Frame | 860*128mm, thickness 5+4 |
| Circuit | 24V circuit system |
| Other | Fire extinguisher, warning sign, vehicle tools, spare tire, towing hook, anti-aircraft lights, chassis protection net, water tank protection net |
| Performance Parameter | |||
| Overall Dimension(mm) | 4910 × 2000 × 2356(Length×Width×Height) | ||
| Cargobox Dimension(mm) | 1620 × 1860 × 550(Length×Width×Height) | ||
| Total Mass(kg) | 5800 | Curb Weight(kg) | 2860 |
| Max. Power(kW/rpm) | 83 | Axlebase(mm) | 2800 |
| Wheelbase(mm) | 1740/1700 | Displacement(L) | 2.798 |
| Approach Angle (°) | 25 | Departure Angle (°) | 25 |
| Max. Speed(km/h) | 85 | Tank Capacity(L) | 150 |
| No. of cylinders | 4 | No. of members | 6 |
| Minimum Turning Radius(m) | 7.1 | ||
This parameter is for reference only. The margin of error is plus or minus three percentage points.
