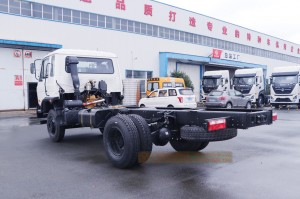

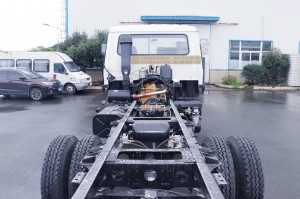

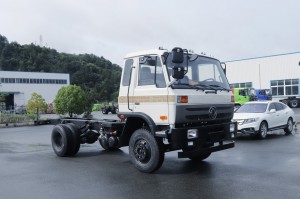

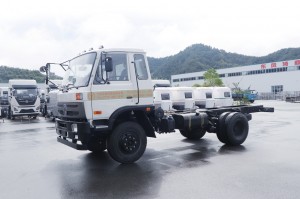

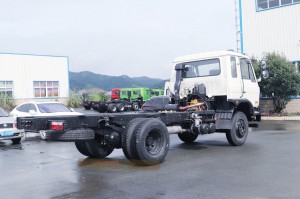

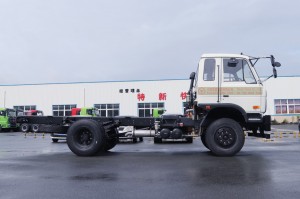

4×2 Dongfeng Off-road Vehilce Chassis
Product Description
This vehicle chassis is a Dongfeng 4×2 chassis.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×2 |
| Engine | YC4S170-50 |
| Gearbox | Mechanical Manual eight speed |
| Transfer case | High-low speed |

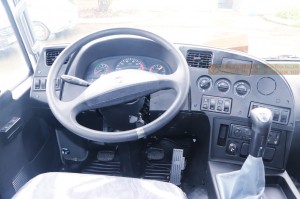

| Cab | Three seats |
| Axle | Max. Load 2.7Tons/7Tons (Front/Rear) |
| Tyre | 9.00R20 (6+1) |
| Other | Hydraulic steering power, exhaust braking |
| Performance Parameter | |||
| Overall Dimension(mm) | 7150×2450×2800(Length×Width×Height) | ||
| Modification size(mm) | 4900 | ||
| Total Mass(kg) | 9700 | Step to the floor(mm) | 860 |
| Max. Power(kW/rpm) | 125 | Max. Torque(N.m) | 600 |
| Wheelbase(mm) | 4200 | Displacement(L) | 5.9 |
| Approach Angle (°) | 32 | Departure Angle (°) | 35 |
| Ground Clearance(mm) | 310 | Fording depth (mm) | 550 |
| Max. Speed(km/h) | 85 | Plate spring |
9/11+8 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
