4×2 Dongfeng Truck Lifting Truck–Dongfeng 10T Truck Lifting Truck–Xugong 10T Four-section Boom Crane
Product Description

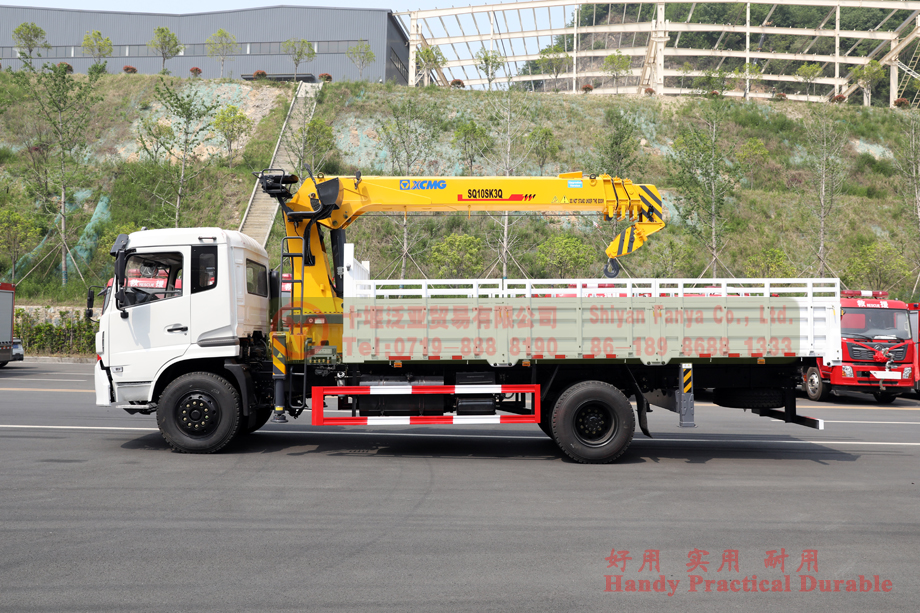

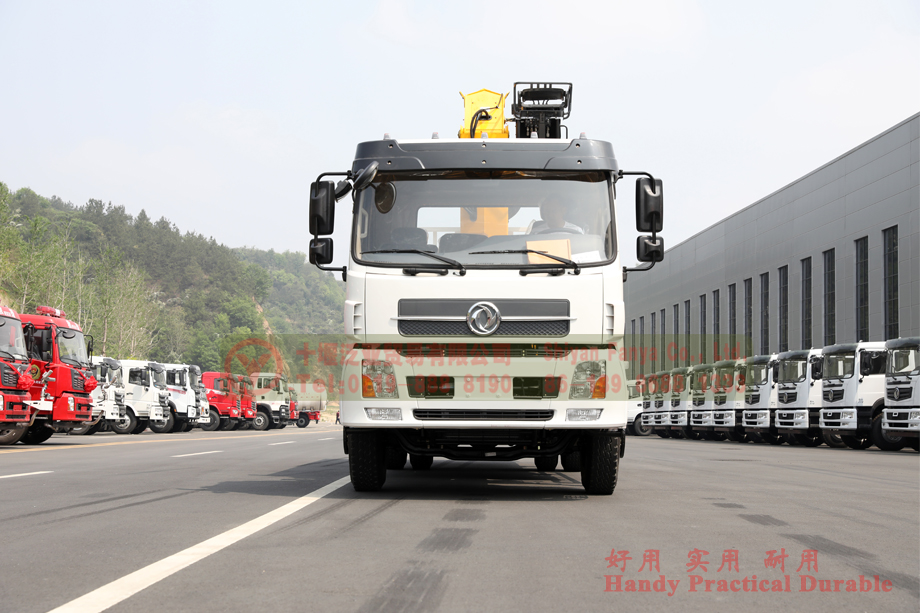

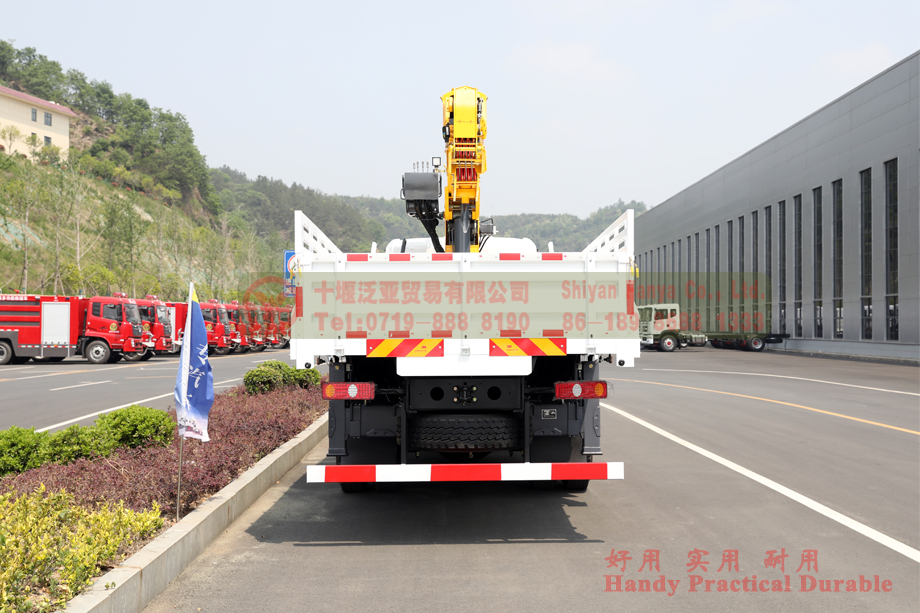

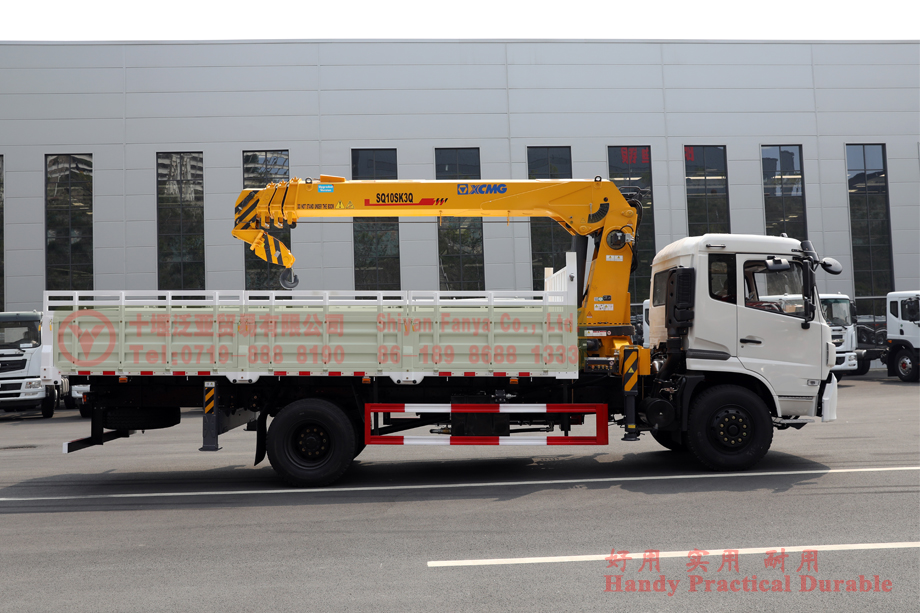

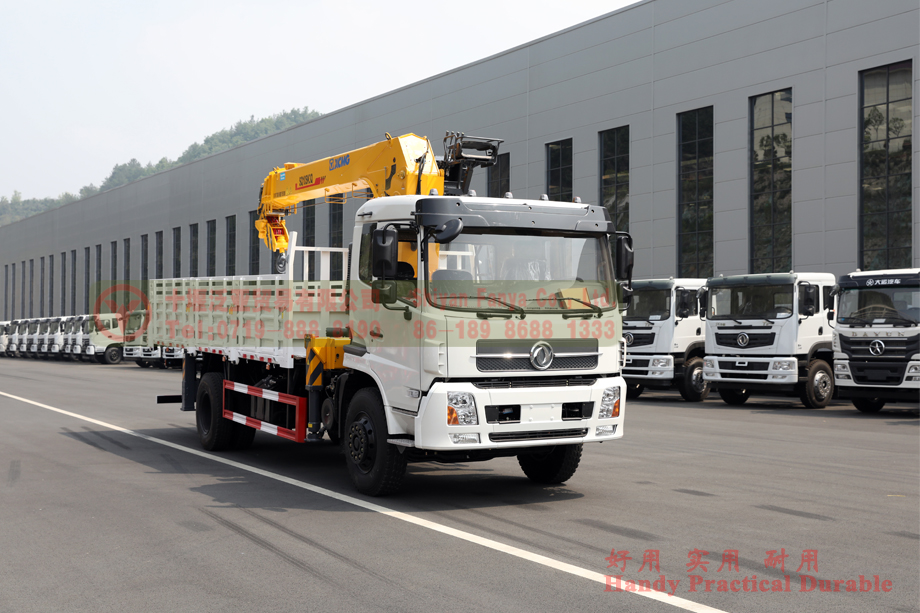

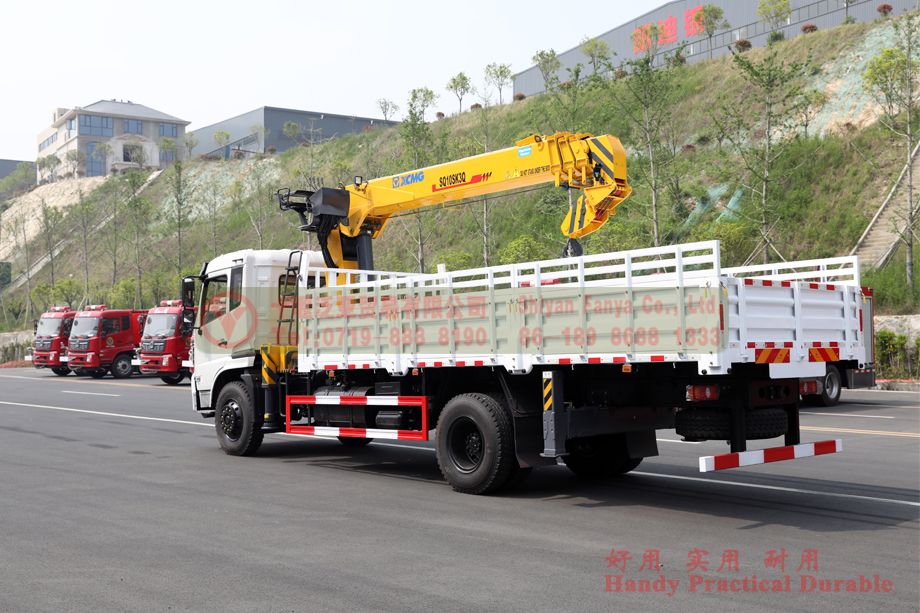

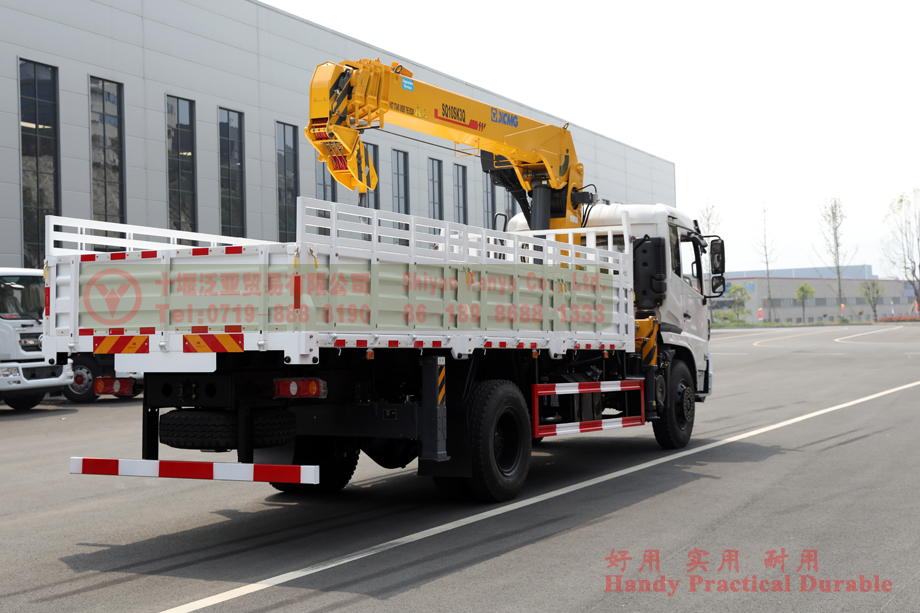

The 4×2 Dongfeng 10-ton truck-mounted crane adopts XCMG 10T four-jib crane with cargo box size 6200×2300×900mm, which is suitable for road construction, port freight and field rescue. The crane needs to check the surrounding environment before operation, and the legs must be unfolded on solid ground before it can work.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×2 |
| Engine | Yuchai YC6J210-33 |
| Gearbox | Mechanical Manual eight speed |
| Transfer case | High-low speed |
| Cab | Dongfeng flathead one and a half row (with sleeper) |
| Axle | Max. Load 5Tons/13Tons (Front/Rear) |
| Tyre | 10.00R20 (6 + 1) |
| Frame | 280mm, triple reinforced |
| Suspension | Steel plate spring 7/8+10 pieces |
| Circuits | 24V circuit system |
| Other | Installation of XCMG SQ10SK3Q four-section boom 10-ton crane with electric rear outriggers |
| Performance Parameter | |||
| Overall Dimension(mm) | 9665 × 2515 × 3580(Length×Width×Height) (The height is the height above the ground at the highest point when the crane is retracted) | ||
| Chassis dimension(mm) | 9395 × 2230 × 2980(Length×Width×Height) | ||
| Cargo box dimension(mm) | 6200 × 2300 × 900(Length×Width×Height) | ||
| Total Mass(kg) | 18000 | Curb Weight(kg) | 11900 |
| Max. Power(kW) | 156 | Max. Torque(N.m) | 710 |
| Wheelbase(mm) | 5000 | Displacement(L) | 6.494 |
| Front suspension(mm) | 1450 | Rear suspension(mm) | 3215 |
| Ground Clearance(mm) | 310 | Fording depth (mm) | 550 |
| Max. Speed(km/h) | 90 | Tank Capacity(L) | 300 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
