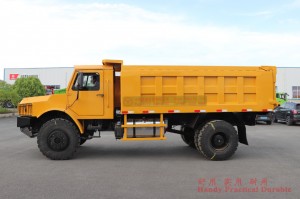

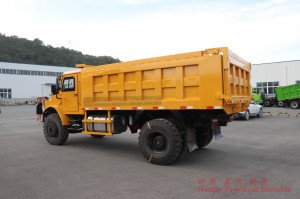

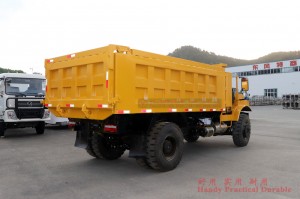

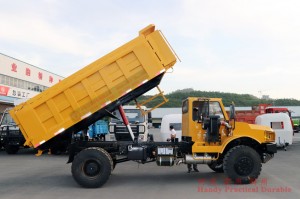

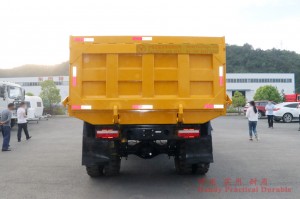

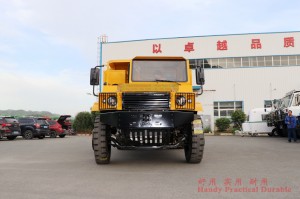

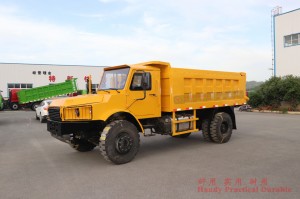

4×2 mining area off-road dump truck
Product Description
This vehicle is generally used for mining transportation, suitable for inferior roads such as mines, is a good helper of miners. The cab is specially tailored for one person to sit and drive. The single half cab increases the internal space of the cab. And perfectly use the other half of the space, made of an air filter external frame, reduce the chassis parts of the centralized push and involuntary mutual loss.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | YC 6A270-46 |
| Gearbox | Mechanical Manual 12 speed |
| Transfer case | High-low speed |
| Cab | Three seats, Dongfeng 140 long-head cab |
| Axle | Max. Load 6.5Tons/16Tons (Front/Rear) |
| Tyre | 11R18 (6 + 1) |
| Electrical appliance |
24V circuit system |
| Performance Parameter | |||
| Overall Dimension(mm) | 7150 × 2550 × 2590(Length×Width×Height) | ||
| Cargo size(mm) | 4200 × 2550 × 1100 | ||
| Total Mass(kg) | 36500 | Curb Weight(kg) | 11550 |
| Max. Power(kW/rpm) | 199 | Max. Torque(N.m) | 199 |
| Wheelbase(mm) | 4200 | Displacement(L) | 7.2 |
| Approach Angle (°) | 43 | Departure Angle (°) | 41 |
| Ground Clearance(mm) | 305 | Fording depth (mm) | 570 |
| Max. vertical crossing obstacle height (mm) | 85 | Tank Capacity(L) | 280 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
