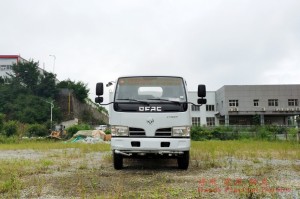

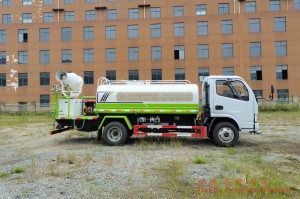

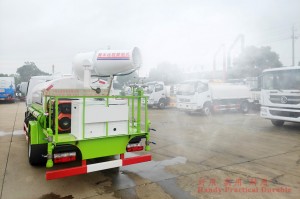

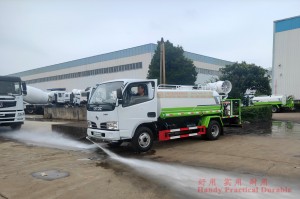

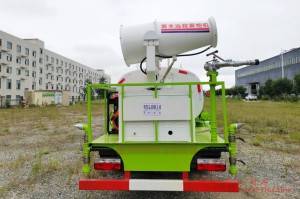

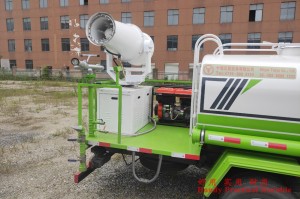

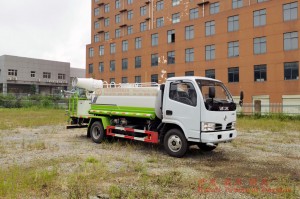

4×4 Dongfeng Greening Spraying Multifunctional Vehicle
Product Description
4×4 Dongfeng Greening Spraying Municipal Vehicle, this vehicle is one of Dongfeng Light-duty truck series vehicle.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | DCC CY4100Q |
| Gearbox | Mechanical Manual five speed |
| Transfer case | High-low speed |
| Cab | Flat head single row, three seats |
| Tyre | 7.00R16 (6 + 1) |
| Electrical appliance | 24V circuit system |
| Other | Hydraulic steering power, exhaust braking |
| Performance Parameter | |||
| Overall Dimension(mm) | 6430 × 1770 × 2400(Length×Width×Height) | ||
| Total Mass(kg) | 6495 | Curb Weight(kg) | 3300 |
| Max. Power(kW/rpm) | 125 | Max. Torque(N.m) | 230 |
| Wheelbase(mm) | 3300 | Displacement(L) | 3.7 |
| Approach Angle (°) | 27 | Departure Angle (°) | 46 |
| Max. Speed(km/h) | 87 | Tank Capacity(L) | 110 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
