5-ton Dongfeng Small Light Truck Dump Truck–Export Dump Trucks–Dongfeng Single-row 4*2 Light Dump Truck
Product Description

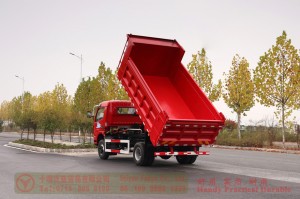

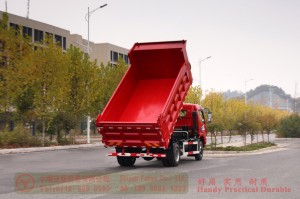

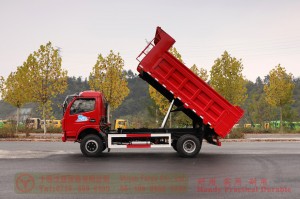

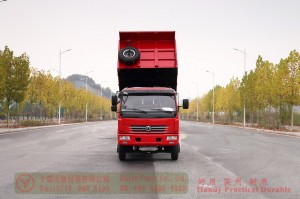

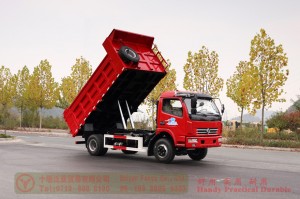

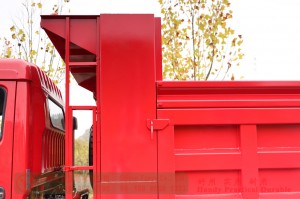

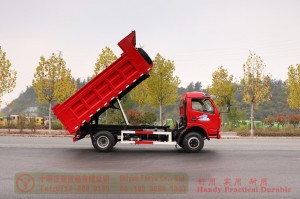

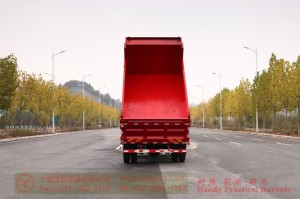

Dongfeng single-row 4*2 light tipper truck can carry 5 tons of cargo, adopting the middle double cylinder lifting structure, the box plate is thickened, and the tail box plate opens automatically when the cargo box is lifted. The left and right panels can be opened independently, and the tail panel can be opened in sections. Spare tire and ladder are installed in front of the cargo box.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×2 |
| Engine | ISD 160 43 |
| Gearbox | Manual eight speed |
| Transfer case | High-low speed |

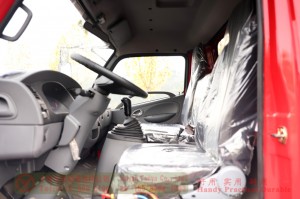

| Cab | Dongfeng single-row light truck cab |
| Axle | Max. Load 4Tons/8Tons (Front/Rear) |

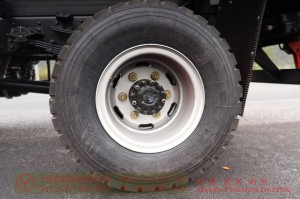

| Tyre | 8.25R16LT (6 + 1) |
| Suspension | Steel plate spring 8/8+10 |
| Circuit | 24V circuit system |

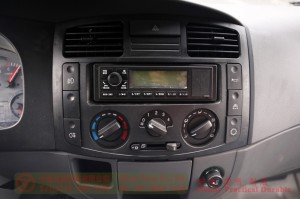

| Other | Heating and air conditioning, back-up camera, right-hand drive cab, brake cooling tanks |
| Performance Parameter | |||
| Overall Dimension(mm) | 6118 × 2420 × 2850(Length×Width×Height) | ||
| Inside dimensions of cargo box(mm) | 4000 × 2180 × (800+200)(Length×Width×Height) | ||
| Total Mass(kg) | 12000 | Curb Weight(kg) | 6110 |
| Payload capacity(kg) | 5800 | Axlebase(mm) | 3550 |
| Max. Power(kW/rpm) | 140 | Front/Rear suspension(mm) | 1129/1439 |
| Wheelbase(mm) | 1780/1698 | Displacement(L) | 4.5 |
| Approach Angle (°) | 27 | Departure Angle (°) | 18 |
| Ground Clearance(mm) | 260 | Fording depth (mm) | 440 |
| Max. Speed(km/h) | ≥88 | Tank Capacity(L) | 140 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
