6 × 6 flat head Off-road engineering vehicle and refulling truck
Product Description

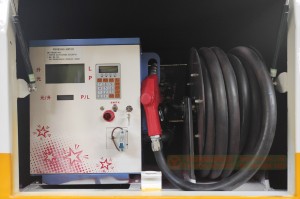

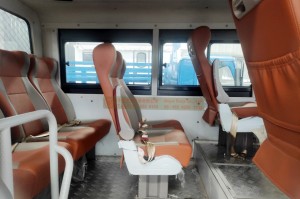

This vehicle is designed by our company. This vehicle can contain 10 persons and load 3m³ fuel. This engineering rescue vehicle is multifunctional, it can not only take 10 persons but also load 3m³ fuel. Besides, this vehicle is equipped with oilling machine. It can provide fuel for other vehicle when vehicle ran out of fuel in motion.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins B170 33 |
| Gearbox | Mechanical Manual five speed |
| Transfer case | High-low speed |
| Number of seat |
Ten seats |
| Axle | Max. Load 3.3Tons/3.5Tons/3.5Tons (Front/Middle/Rear) |
| Tyre | 11R18 (6 + 1) |
| Electrical appliance | 24V circuit system |
| Optional | AC, Warm air blower |
| Performance Parameter | |||
| Overall Dimension(mm) | 6620×2180×2780(Length×Width×Height) | ||
| Tank size(mm) | 2300×2100×1810 | ||
| Max. Power(kW/rpm) | 125 | Max. Torque(N.m) | 560 |
| Wheelbase(mm) | 3300+1070 | Displacement(L) | 5.9 |
| Approach Angle (°) | 22 | Departure Angle (°) | 42 |
| Ground Clearance(mm) | 285 | Fording depth (mm) | 570 |
| Max. Speed(km/h) | 80 | Tank Capacity(L) | 100 |
This parameter is for reference only. The margin of error is plus or minus three percentage.
