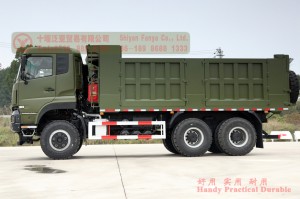

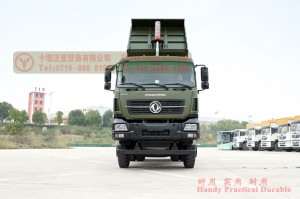

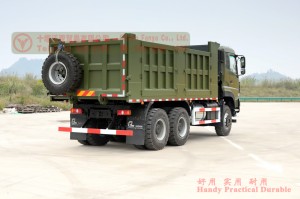

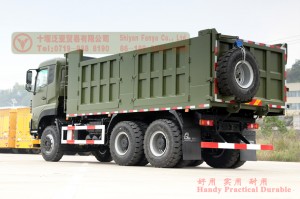

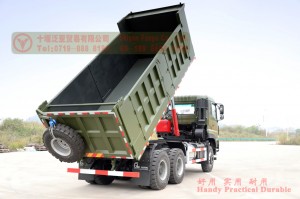

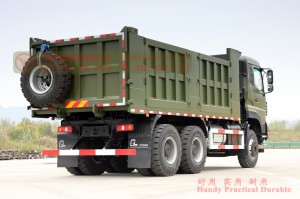

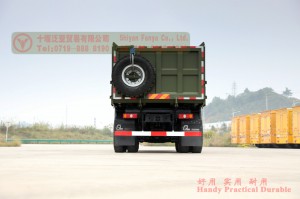

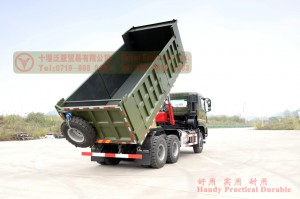

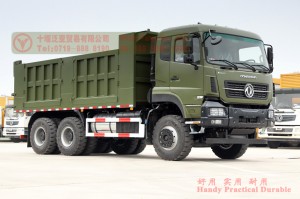

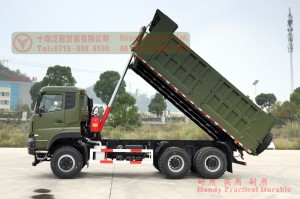

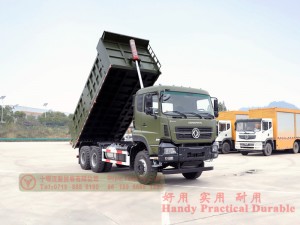

6×4 Dump Truck Off-road Vehicle Heavy Duty Truck One Row and a Half
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×4 |
| Engine | Yu Chai YC6Mk375-33 |
| Gearbox | Manual twelve speed |
| Cab | One and a half row |
| Axle | Max. Load 7 Tons/16 Tons/16 Tons (Front/Mid/Rear) |
| Tyre | 12.0R20 Industrial (10 + 1) |
| Leaf Spring | 10/13 |
| Frame | 860*300*195 double layer partial 3 layers |
| Performance Parameter | |||
| Chassis Dimension(mm) | 8000 × 2460 × 3360(Length×Width×Height) | ||
| Cargo Box Dimension(mm) | 5600*2300*1400(Length×Width×Height) | ||
| Total Mass(kg) | 25000 | Curb Weight(kg) | 15500 |
| Wheel Track(mm) | 2100/1892/1892 | Cylinder | 6 |
| Wheelbase(mm) | 3850+1350 | Displacement(L) | 10.338 |
| Approach Angle (°) | 18 | Departure Angle (°) | 17 |
| Ground Clearance(mm) | 365 | Fording depth (mm) | 560 |
| Max. Speed(km/h) | 85 | Tank Capacity(L) | 380 |
| Front Overhang(mm) | 1370 | Rear Overhang(mm) | 1430 |
| Frame Top Ground Clearance(mm) | 1150（Rear） | Footboard Clearance(mm) | 670 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
