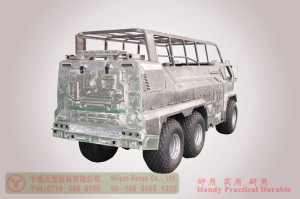

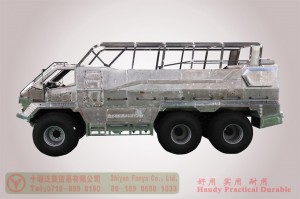

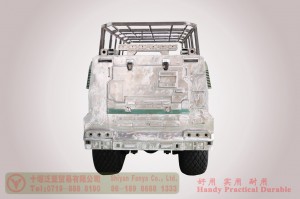

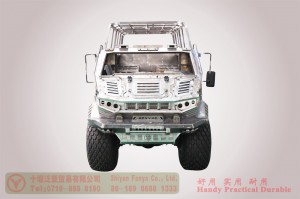

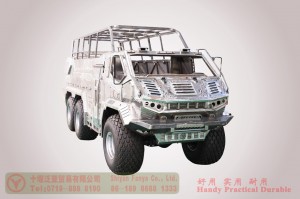

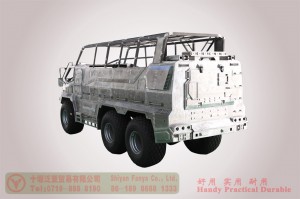

Automatic Thickened Armored Desert Vehicle
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | German man 640 hp |
| Gearbox | Allison USA Automatic |
| Axle | Max. Load 7.5Tons/10Tons/10Tons (Front/Middle/Rear) |
| Frame | 800×300 (8+6) |
| Tyre | 28L-26 Desert Tire |
| Performance Parameter | |||
| Overall Dimension (mm) | 9567× 2994 × 3440(Length×Width×Height) | ||
| Total Mass(kg) | 11600 | Curb Weight(kg) | 6160 |
| Max. Power(kW/rpm) | 125 | Max. Torque(N.m) | 560 |
| Wheelbase(mm) | 4400+1750 | Displacement(L) | 15.3 |
| Ground Clearance(mm) | 580 | Fording depth (mm) | 950 |
| Axlebase(mm) | 2270/2320/2320 | Tank Capacity(L) | 160 |
| Max. Speed(km/h) | 85 | Seats | 20 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
