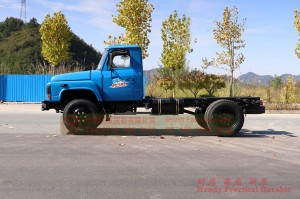

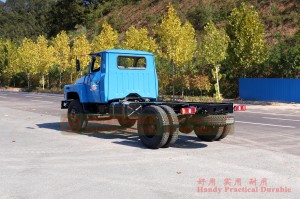

Customized Dongfeng 4*2 light truck tip off-road chassis–116 HP small truck chassis–Dongfeng EQ3092 light micro truck chassis conversion
Product Description
4*2 Dongfeng light truck chassis, can be customized 4*4 off-road model according to the need, can be converted into a special type of truck for municipal sanitation, road rescue, storage and transportation and other fields. Whether it’s a city road or a remote mountain road, with its excellent off-road performance, unparalleled driving experience.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×2 (can be customized into 4×4) |
| Engine | Yunnei 1402QBZL(116hp) |
| Gearbox | Mechanical Manual five speed |
| Cab | Pointed single row |
| Axle | Max. Load 3Tons/6Tons (Front/Rear) |

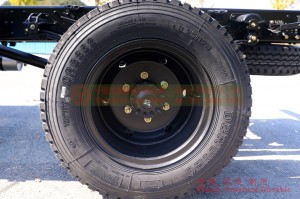

| Tyre | 8.25R20(6 + 1) |
| Frame | 860*230mm |
| Circuit | 24V Circuit System |
| Performance Parameter | |||
| Chassis Dimension(mm) | 6110 × 2320 × 2480(Length×Width×Height) | ||
| Modification size(mm) | ≥3140 | ||
| Total Mass(kg) | 9000 | Curb Weight(kg) | 3140 |
| Max. Power(kW/rpm) | 85 | Axlebase(mm) | 1804/1820 |
| Wheelbase(mm) | 3750 | Displacement(L) | 3.76 |
| Approach Angle (°) | 35 | Departure Angle (°) | 33 |
| Front Suspension(mm) | 1080 | Rear Suspension(mm) | 1280 |
| Fording Depth(mm) | 550 | Ground Clearance(mm) | 470 |
| Max. Speed(km/h) | 85 | Tank Capacity(L) | 140 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
