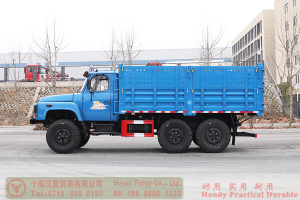

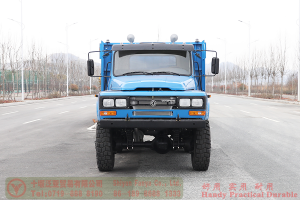

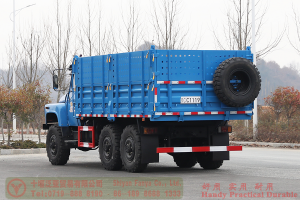

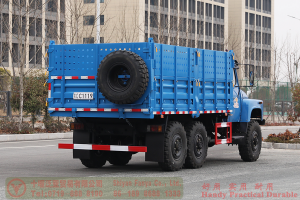

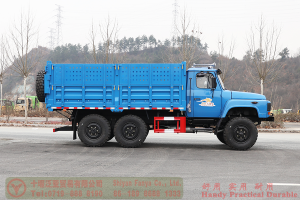

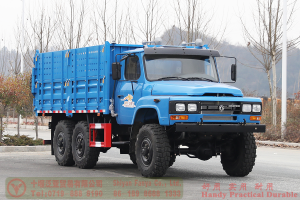

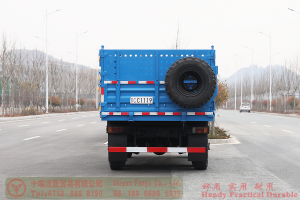

Dongfeng 170 hp 6*6 dump truck–6WD 2.5 tons off-road truck–Off-road cargo truck for export
Product Description
Dump trucks in civil engineering often work jointly with excavators, loaders, belt conveyors and other engineering machinery, constituting a loading, transporting and unloading production line for loading and unloading and transportation of earth, sand and gravel, and bulk materials. As the loading car can automatically tilt a certain angle to unload materials, greatly save unloading time and labor, shorten the transportation cycle, improve production efficiency, reduce transportation costs, is commonly used in the transportation of special vehicles.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins B170 33 |
| Gearbox | Mechanical Manual five speed |
| Transfer case | High-low speed |
| Cab | Dongfeng pointed single row |
| Axle | Max. Load 2.5Tons/2.5Tons/2.5Tons (Front/Middle/Rear) |
| Suspension | Steel plate spring 9/11 pieces |
| Frame | 860*232mm |
| Tyre | 11R18 (6 + 1) |
| Performance Parameter | |||
| Overall Dimension(mm) | 6760 × 2280 × 2710(Length×Width×Height) | ||
| Cargobox Dimension(mm) | 3730 × 2070 × (600+600)(Length×Width×Height) | ||
| Payload Capacity(kg) | 2500 | Curb Weight(kg) | 5830 |
| Max. Power(kW/rpm) | 125 | Axlebase(mm) | 1774 |
| Wheelbase(mm) | 3190+1100 | Displacement(L) | 5.9 |
| Approach Angle (°) | 40 | Departure Angle (°) | 20 |
| Ground Clearance(mm) | 285 | Fording Depth (mm) | 560 |
| Max. Speed(km/h) | 87 | Tank Capacity(L) | 210 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
