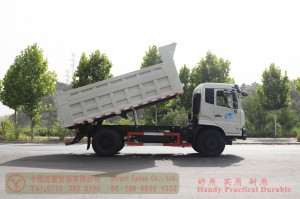

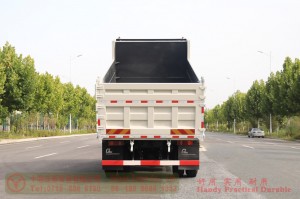

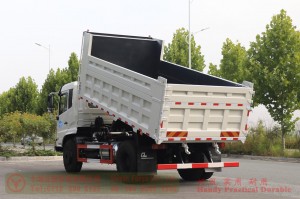

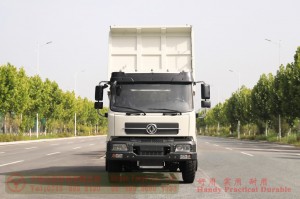

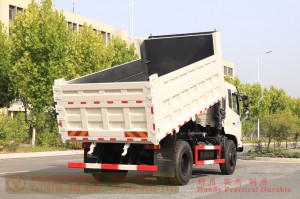

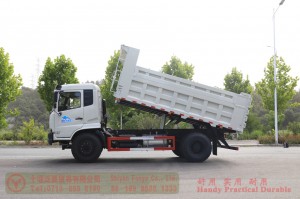

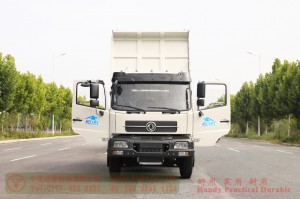

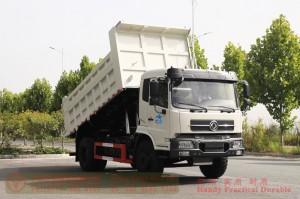

Dongfeng 4*2 Dump Truck–Dongfeng Pointed Dump Truck–Export Specialized Dump Trucks
Product Description
Dump trucks in civil engineering often work jointly with excavators, loaders, belt conveyors and other engineering machinery, constituting a loading, transporting and unloading production line for loading and unloading and transportation of earth, sand and gravel, and bulk materials. As the loading car can automatically tilt a certain angle to unload materials, greatly save unloading time and labor, shorten the transportation cycle, improve production efficiency, reduce transportation costs, is commonly used in the transportation of special vehicles.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×2 |
| Engine | Wechai WP6.240 |
| Gearbox | Mechanical Manual Ten Speed |

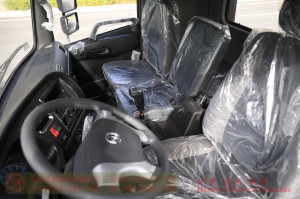

| Cab | Dongfeng Flathead row half |
| Axle | Max. Load 5Tons/13Tons (Front/Rear)(Wheel Edge Reduction) |
| Frame | 780×240,(8+4)mm |
| Tyre | 11.00R20 (6 + 1) |
| Performance Parameter | |||
| Overall Dimension (mm) | 7080× 2540 × 3125(Length×Width×Height) | ||
| Carobox Dimension (mm) | 4600× 2300 × (800+400)(Length×Width×Height) | ||
| Total Mass(kg) | 18000 | Curb Weight(kg) | 9200 |
| Max. Power(kW/rpm) | 176 | Max. Torque(N.m) | 800 |
| Wheelbase(mm) | 3950 | Displacement(L) | 6.23 |
| Approach Angle (°) | 23 | Departure Angle (°) | 15 |
| Ground Clearance(mm) | 430 | Fording depth (mm) | 430 |
| Axlebase(mm) | 1950/1825 | Tank Capacity(L) | 300 |
| Max. Speed(km/h) | 90 | ||
This parameter is for reference only. The margin of error is plus or minus three percentage points.
