Dongfeng 4*2 Dump Truck in White Off-road Vehicle Good Performance

Short Description:


Product Detail

Product Tags

Product Description

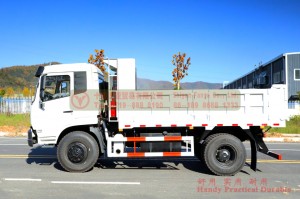

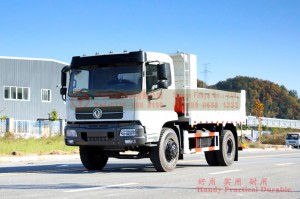

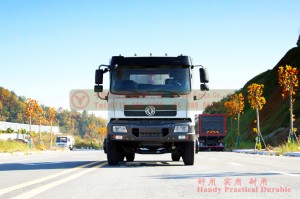

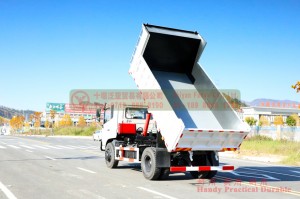

Dongfeng 4*2 Dump Truck in White.

Product Parameter

Basic Configuration
Drive Mode 4×2
Engine Cummins B170 33
Gearbox Mechanical Manual five speed
Transfer case High-low speed

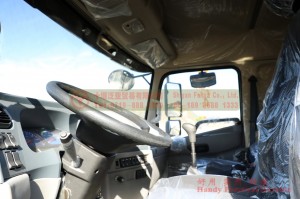

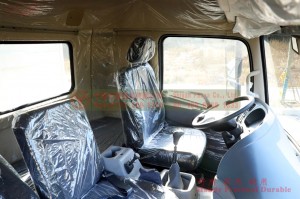

Cab Three seats
Axle Max. Load 2.5Tons/7.5Tons (Front/Rear)
Tyre 9.00-20 (6 + 1)
Electrical Appliance 24V Circuit system
Performance Parameter
Overall Dimension(mm) 7800 × 2500 × 2550(Length×Width×Height)
Plate size(mm) 3750 × 2500 × 1700
Curb Weight(kg) 5620
Max. Power(kW/rpm) 125 Max. Torque(N.m) 560
Wheelbase(mm) 3950 Displacement(L) 5.9
Approach Angle (°) 38 Departure Angle (°) 18
Ground Clearance(mm) 265 Fording depth (mm) 600
Max. Speed(km/h) 85 Tank Capacity(L) 140

This parameter is for reference only. The margin of error is plus or minus three percentage points.
