Dongfeng 4*2 Light Dump Truck–Dongfeng Tip Tipper Dump Truck–Export Specialized Dump Trucks

Short Description:


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Product Description

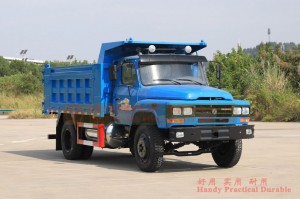

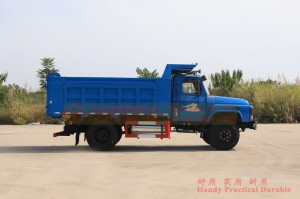

    4*2 Dongfeng Tip Tipper Dump Truck is a small commercial dump truck, very suitable for urban towns and villages used to transport household goods and vegetables and fruits, small displacement and large power, energy saving and emission reduction.

    Product Parameter

    Basic Configuration
    Drive Mode 4×2 (can be customized into 4×4)
    Engine Yunnei1402qbzl(116hp)

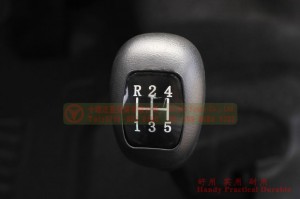

    Gearbox Mechanical Manual five speed
    Cab Pointed single row
    Axle Max. Load 3Tons/6Tons (Front/Rear)

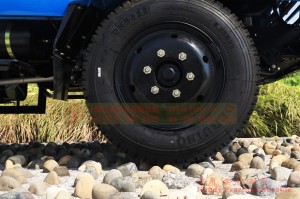

    Tyre 8.25R20(6 + 1)
    Suspension Steel plate spring 10/8+12
    Circuit 24V Circuit System
    Optional Heating and air conditioning, winch, reversing camera, brake cooling tanks

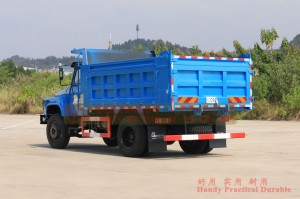

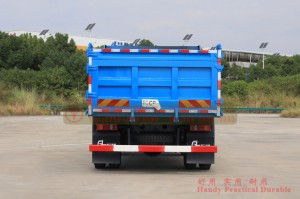

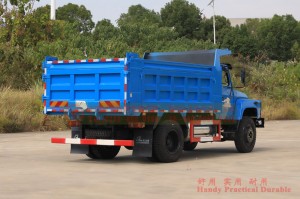

    The cargo box adopts single-cylinder lifting and tilting backward. The surface of the cargo box adopts the classic field check pattern, and the rear part of the cargo box adopts self-discharging opening, which can also be opened to the right side separately for easy loading and unloading of goods. The spare tire is mounted on the rear of the frame.

    Performance Parameter
    Chassis Dimension(mm) 6510 × 2420 × 2700(Length×Width×Height)
    Cargobox Dimension(mm) 3600× 2200 × (800+200)(Length×Width×Height)
    Total Mass(kg) 9000 Curb Weight(kg) 5450
    Max. Power(kW/rpm) 85 Axlebase(mm) 1804/1820
    Wheelbase(mm) 3750 Displacement(L) 3.76
    Approach Angle (°) 29 Departure Angle (°) 18

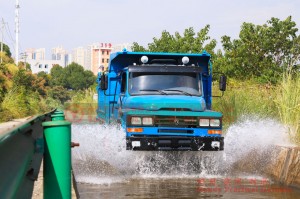

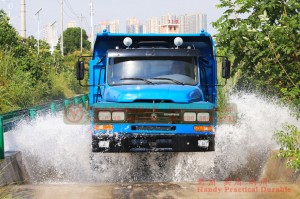

    Fording Depth(mm) 550 Ground Clearance(mm) 265
    Front Suspesion(mm) 1080 Rear Suspension(mm) 1680
    Max. Speed(km/h) 85 Tank Capacity(L) 140

    This parameter is for reference only. The margin of error is plus or minus three percentage points.
