Dongfeng 4*2 light truck off-road special chassis – 160 hp small truck chassis – Dongfeng small micro truck customized export chassis manufacturers
Product Description

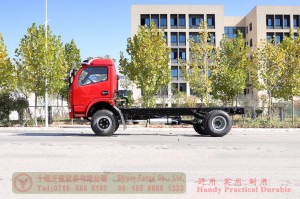

Dongfeng light truck 4*2 chassis, compact and lightweight, energy saving and emission reduction. It is mainly used for transporting a small amount of goods in towns and villages, and can also be converted into special vehicles for municipal sanitation, road rescue, storage and transportation.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×2 |
| Engine | Yuchai YC4E160-33 |
| Gearbox | Mechanical Manual six speed |
| Transfer case | High-low speed |
| Cab | Two seats |
| Axle | Max. Load 3.5Tons/7Tons (Front/Rear) |

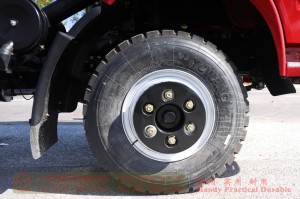

| Tyre | 8.25R16LT (6 + 1) |
| Circuit | 24V circuit system |
| Other | Heating and air conditioning, pickup, right-hand drive cab |
| Performance Parameter | |||
| Chassis Dimension(mm) | 6035 × 2230 × 2620(Length×Width×Height) | ||
| Modification size(mm) | ≥4100 | ||
| Total Mass(kg) | 11995 | Axlebase(mm) | 3800 |
| Wheelbase(mm) | 1800/1695 | Max. Speed(km/h) | ≥90 |
| Approach Angle (°) | 25 | Departure Angle (°) | 35 |
| Ground Clearance(mm) | 255 | Tank Capacity(L) | 150 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
