Product Description

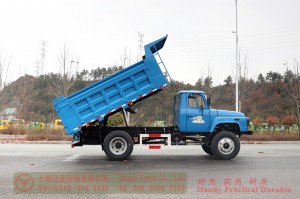

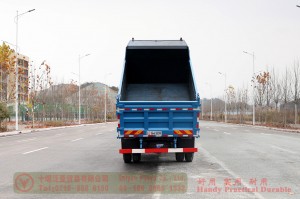

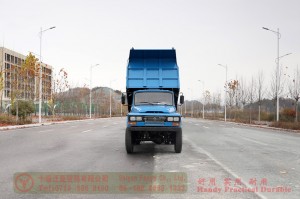

4*4 Dongfeng Tip Tipper Dump Truck is a small commercial dump truck, very suitable for urban towns and villages used to transport household goods and vegetables and fruits, small displacement and large power, energy saving and emission reduction.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | Cummins B170 33 |
| Gearbox | Mechanical Manual five speed |
| Cab | Pointed single row |
| Axle | Max. Load 2.5Tons/8Tons (Front/Rear) |
| Tyre | 9.00R20(6 + 1) |
| Frame | 860*232mm,double layer |
| Circuit | 24V Circuit System |
| Performance Parameter | |||
| Overall Dimension(mm) | 6410 × 2420 × 2730(Length×Width×Height) | ||
| Cargobox Dimension(mm) | 3600× 2200 × (800+200)(Length×Width×Height) | ||
| Total Mass(kg) | 10800 | Curb Weight(kg) | 6010 |
| Max. Power(kW/rpm) | 125 | Axlebase(mm) | 1840/1730 |
| Wheelbase(mm) | 3700 | Displacement(L) | 5.9 |
| Approach Angle (°) | 41 | Departure Angle (°) | 30 |
| Front Suspension(mm) | 980 | Rear Suspension(mm) | 1730 |
| Fording Depth(mm) | 620 | Ground Clearance(mm) | 280 |
| Max. Speed(km/h) | 90 | Tank Capacity(L) | 160 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
