Dongfeng 4*4 Meter White Pointed Cargo Chassis–Dongfeng 170 HP Off-road Truck Chassis–Dongfeng Cargo Truck Export Manufacturer
Product Description

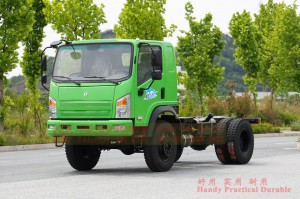

Dongfeng 4WD EQ1093 is an economical tip off-road special purpose vehicle chassis with various uses, suitable for conversion into all kinds of special purpose vehicles. It has certain off-road performance and can be driven under bad road conditions.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | B170 33 |
| Gearbox | Mechanical Manual Five Speed |
| Transmission | High and low speed |
| Cab | Pointed Single Row |
| Axle | Max. Load 2.7Tons/7Tons (Front/Rear) |
| Tyre | 9.00R20(6 + 1) |
| Frame | 860*232mm |
| Performance Parameter | |||
| Chassis Dimension(mm) | 7070 × 2500 × 2850(Length×Width×Height) | ||
| Payload Capacity(kg) | 5000 | Curb Weight(kg) | 4960 |
| Max. Power(kW/rpm) | 125 | Axlebase(mm) | 1820/1800 |
| Wheelbase(mm) | 4200 | Displacement(L) | 5.9 |
| Approach Angle (°) | 38 | Departure Angle (°) | 13 |
| Fording Depth(mm) | 630 | Ground Clearance(mm) | 310 |
| Max. Speed(km/h) | 90 | Tank Capacity(L) | 160 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
