Dongfeng 4WD off-road special chassis–4*4 Dongfeng 170 HP off-road chassis modification–Dongfeng off-road truck chassis export manufacturers
Product Description
4*4 Dongfeng light truck chassis, can be converted into a special type of truck for municipal sanitation, road rescue, storage and transportation and other fields. Whether it’s a city road or a remote mountain road, with its excellent off-road performance, unparalleled driving experience.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | Cummins B170 33 |
| Gearbox | Mechanical Manual five speed |
| Cab | Pointed single row |
| Axle | Max. Load 2.5Tons/8Tons (Front/Rear) |

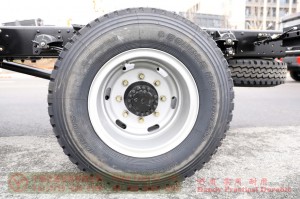

| Tyre | 9.00R20(6 + 1) |
| Frame | 860*232mm,double layer |
| Circuit | 24V Circuit System |
| Performance Parameter | |||
| Chassis Dimension(mm) | 6010 × 2420 × 2730(Length×Width×Height) | ||
| Total Mass(kg) | 10800 | Curb Weight(kg) | 3970 |
| Max. Power(kW/rpm) | 125 | Axlebase(mm) | 1840/1730 |
| Wheelbase(mm) | 3700 | Displacement(L) | 5.9 |
| Approach Angle (°) | 41 | Departure Angle (°) | 30 |
| Front Suspension(mm) | 980 | Rear Suspension(mm) | 1730 |
| Fording Depth(mm) | 620 | Ground Clearance(mm) | 280 |

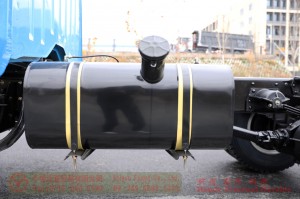

| Max. Speed(km/h) | 90 | Tank Capacity(L) | 160 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
