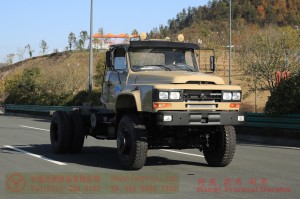

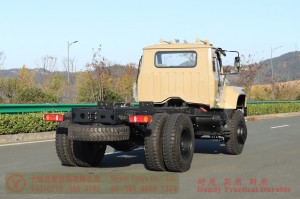

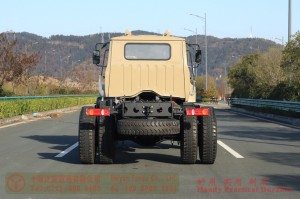

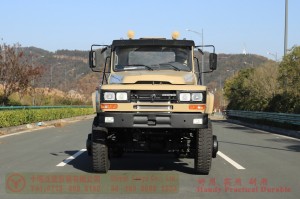

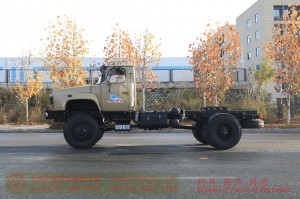

Dongfeng 4WD Pointed off-road special chassis–4*4 Dongfeng 240hp off-road chassis modification–Dongfeng off-road truck chassis export manufacturers
Product Description
4*4 Dongfeng light truck chassis, can be converted into a special type of truck for municipal sanitation, road rescue, storage and transportation and other fields. Whether it’s a city road or a remote mountain road, with its excellent off-road performance, unparalleled driving experience.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | YC6A240-30 |
| Gearbox | Mechanical Manual Eight speed |
| Cab | Pointed Single Row |
| Axle | Max. Load 7Tons/13Tons (Front/Rear) |
| Tyre | 11.00R20(6 + 1) |

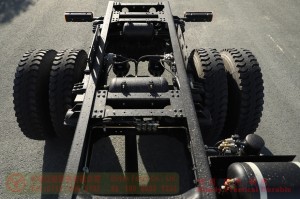

| Frame | 860*280mm,Double layer（8+6） |
| Performance Parameter | |||
| Chassis Dimension(mm) | 6980 × 2560 × 2800(Length×Width×Height) | ||
| Modification Dimension（mm） | ≥3770 | ||
| Total Mass(kg) | 20000 | Curb Weight(kg) | 6040 |
| Max. Power(kW/rpm) | 177 | Axlebase(mm) | 1940/1960 |
| Wheelbase(mm) | 4200 | Displacement(L) | 7.225 |
| Approach Angle (°) | 35 | Departure Angle (°) | 21 |
| Front Suspension(mm) | 1220 | Rear Suspension(mm) | 1220 |
| Fording Depth(mm) | 710 | Ground Clearance(mm) | 360 |

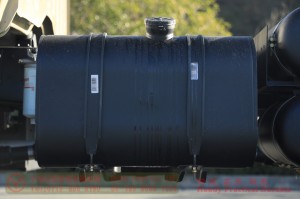

| Max. Speed(km/h) | 90 | Tank Capacity(L) | 210 |
| Upper frame plane off the ground（mm） | 1200 | Overrun height（mm） | 590 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
