Dongfeng 4×2 Dump Truck
Product Description
This vehicle is equipped with YC4D120-21 engine, A121J five speed gearbox and mechanical two speed transfer case.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×2 |
| Engine | YC4D120-21 |
| Gearbox | A121J type, gear mechanical, five forward files, one reverse |
| Transfer case | High-low speed |

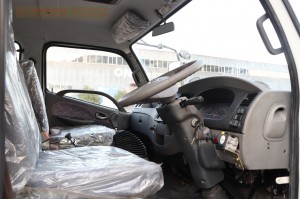

| Cab | Dongfeng flat head single row, three seats |
| Axle | Max. Load 3.3Tons/5.8Tons (Front/Rear) |
| Tyre | 8.25-20 |
| Electrical applicance |
24V circuit system |
| Performance Parameter | |||
| Overall Dimension(mm) | 6170×2400×2780(Length×Width×Height) | ||

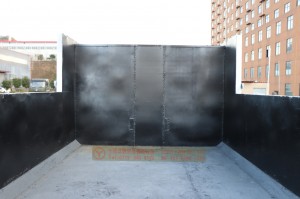

| Cargo Dimension(mm) | 3700×2220×850 | ||
| Total Mass(kg) | 9100 | Curb Weight(kg) | 5090 |
| Max. Power(kW) |
90 | Tank Capacity(L) | 180 |
| Wheelbase(mm) | 3650 | Displacement(L) | 4.2 |
| Approach Angle (°) | 25 | Departure Angle (°) | 14 |
| Ground Clearance(mm) | 220 | Max. Speed(km/h) | 90 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
