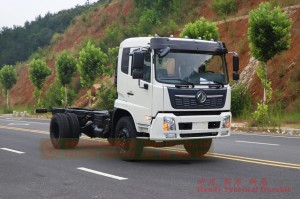

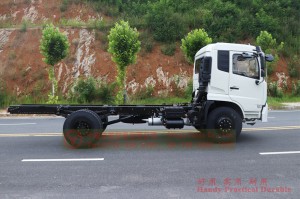

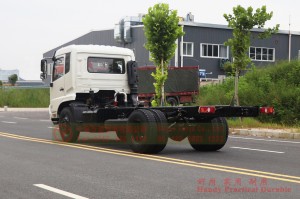

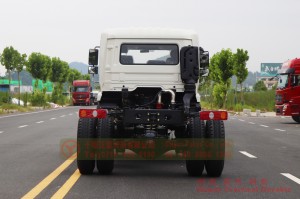

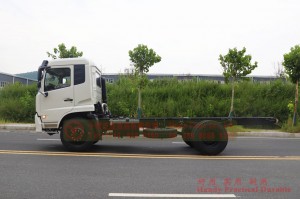

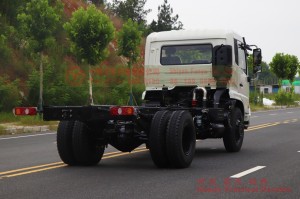

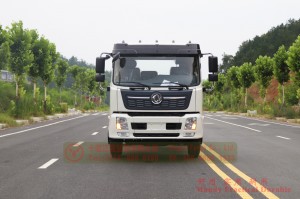

Dongfeng 4X2 high-horsepower off-road chassis–Flat-head one-and-a-half-row cargo chassis–190 hp high-power chassis
Product Description
Dongfeng 4X2 high horsepower off-road chassis, long-term off-road performance is the most basic, in a variety of advantages, the chassis is often used to modify the green sprinkler, dump truck, garbage truck, van, etc..
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×2 |
| Engine | Cummins B190 33 |
| Gearbox | Manual eight speed |
| Frame | 860*250mm, double layer |
| Cab | Dongfeng flathead row and a half (with sleeper and sunshade) |
| Axle | Max. Load 5Tons/10Tons (Front/Rear) |
| Tyre | 10.00R20 (6 + 1) |
| Performance Parameter | |||
| Overall Dimension(mm) | 7640 × 2480 × 2885(Length×Width×Height) | ||
| Modification size(mm) | ≥5270 | ||
| Max. Power(kW/rpm) | 140 | Upper frame plane off the ground(mm) | 1215 |
| Wheelbase(mm) | 3950 | Displacement(L) | 5.9 |
| Approach Angle (°) | 22 | Departure Angle (°) | 23 |
| Ground Clearance(mm) | 260 | Fording depth (mm) | 600 |
| Max. Speed(km/h) | 85 | Tank Capacity(L) | 210 |
| Front suspension(mm) | 1360 | Rear suspensin(mm) | 2330 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
