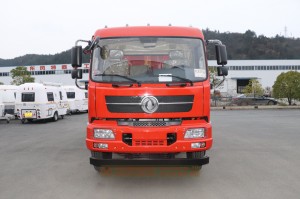

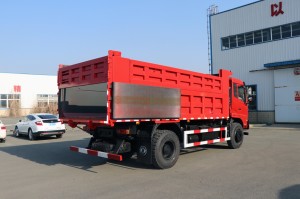

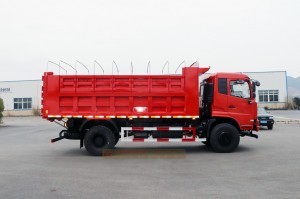

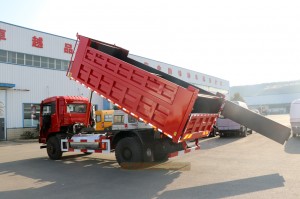

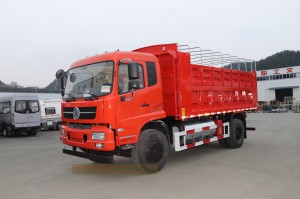

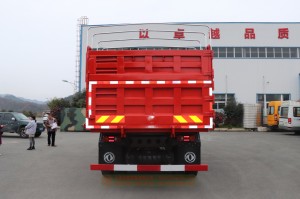

Dongfeng 4×2 Dump Truck Mine Special Truck
Product Description
Dongfeng 4×2 Dump Truck Mine Special Truck
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×2 |
| Engine | Yuchai YC6A240-33 |
| Gearbox | Fast Nine speed |
| Transfer case | High-low speed |
| Cab | Three seats, Dongfeng Tianjin flat head |
| Axle | Max. Load5Tons/16Tons (Front/Rear) |
| Tyre | 11.00R20 (6+1) |
| Electrical Appliance | 24V circuit system |
| Other | The roof can choose rainclub, optional brake cooling water tank |
| Performance Parameter | |||
| Overall Dimension(mm) | 8000 × 2580 × 3050(Length×Width×Height) | ||

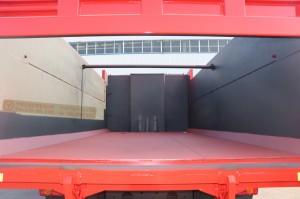

| Cargo size(mm) | 5400 × 2300 × (800 + 600) | ||
| Total Mass(kg) | 21500 | Curb Weight(kg) | 10000 |
| Max. Power(kW/rpm) | 177 | Max. Torque(N.m) | 900 |
| Wheelbase(mm) | 4500 | Displacement(L) | 7.25 |
| Approach Angle (°) | 18 | Departure Angle (°) | 13 |
| Ground Clearance(mm) | 335 | Fording depth (mm) | 530 |
| Max. Speed(km/h) | 85 | Tank Capacity(L) | 280 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
