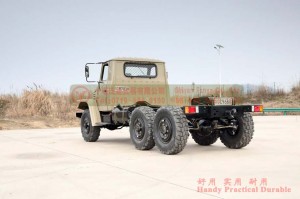

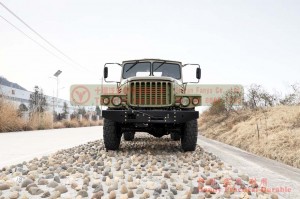

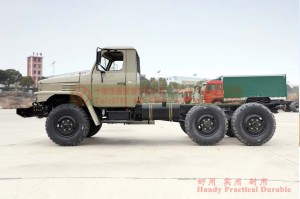

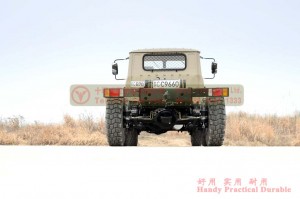

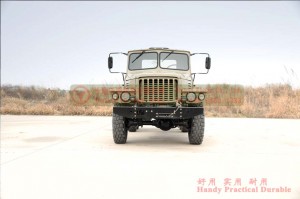

Dongfeng 6*6 Classic EQ2082 Off-road Special Vehicle Trucks Chassis
Product Description
Dongfeng EQ2082 6*6 Classic EQ2082 Off-road Special Vehicle Trucks Chassis
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins B170 40 |
| Gearbox | Mechanical Manual five speed |
| Transfer case | High-low speed |
| Cab | Three seats, Dongfeng 140 long head single row curved glass |
| Axle | Max. Load 2.5Tons/2.5Tons/2.5Tons (Front/Rear/Middle) |
| Tyre | 11R18 (6 + 1) |
| Other | Hydraulic clutch power, hydraulic steering power, exhaust braking |

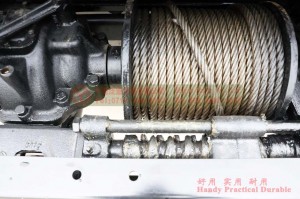

| Special configuration | There are 2 guns in the cab, and the window has a protective net.6 × 6 full-wheel drive, patented design, designed for harsh road conditions. Optional front gear, traction is 44100N |
| Performance Parameter | |||
| Overall Dimension(mm) | 6340 × 2400 × 2385(Length×Width×Height) | ||
| Cargo Size(mm) | 3545 × 2180 × 900(Length×Width×Height) | ||
| Total Mass(kg) | 7800 | Curb Weight(kg) | 5090 |
| Max. Power(kW/rpm) | 140 | Max. Torque(N.m) | 2500 |
| Wheelbase(mm) | 3190+1100 | Displacement(L) | 5.9 |
| Approach Angle (°) | 45 | Departure Angle (°) | 44 |
| Ground Clearance(mm) | 285 | Fording depth (mm) | 1100 |
| Max. Speed(km/h) | 87 | Tank Capacity(L) | 160+60 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
