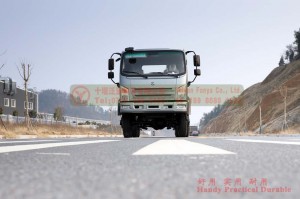

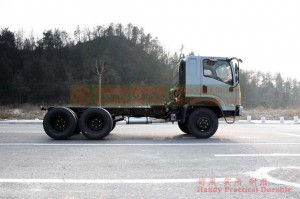

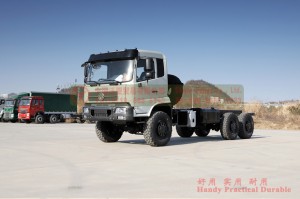

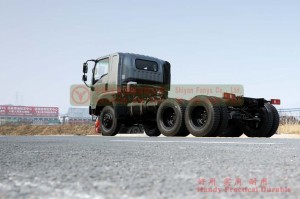

Dongfeng 6*6 Flat Head EQ2082 Road Vehicle Chassis
Product Description
Dongfeng 6*6 Flat Head EQ2082 Road Vehicle Chassis
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |

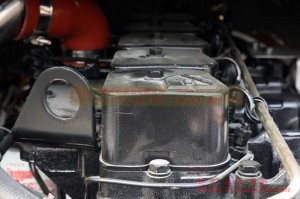

| Engine | Cummins B170 33 |
| Gearbox | Mechanical Manual five speed |
| Transfer case | High-low speed |
| Cab | Three seats |

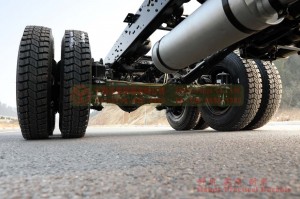

| Axle | Max. Load 2.6Tons/2.6Tons/2.6Tons (Front/Mid/Rear) |
| Tyre | 8.25R20 (10 + 1) |
| Electrical Appliance | 24V Circuit system |
| Performance Parameter | |||
| Overall Dimension(mm) | 6260 × 2520 × 2680(Length×Width×Height) | ||
| Plate size(mm) | 860 × 232 ×75 | ||
| Curb Weight(kg) | 5620 | ||
| Max. Power(kW/rpm) | 125 | Max. Torque(N.m) | 560 |
| Wheelbase(mm) | 1680+1996+1996 | Displacement(L) | 5.9 |
| Approach Angle (°) | 38 | Departure Angle (°) | 18 |
| Ground Clearance(mm) | 280 | Fording depth (mm) | 535 |
| Max. Speed(km/h) | 85 | Tank Capacity(L) | 160 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
