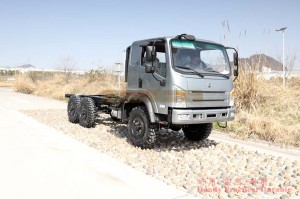

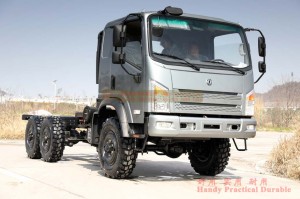

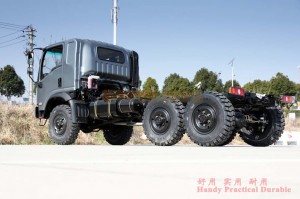

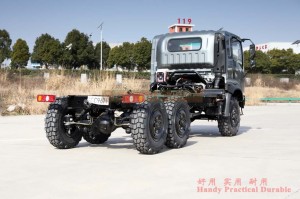

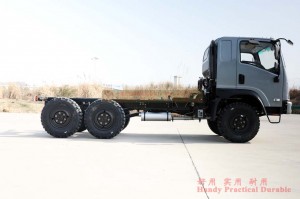

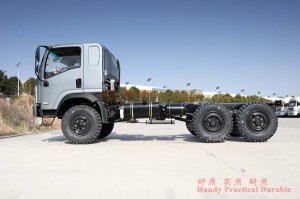

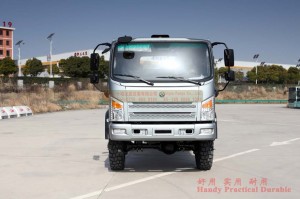

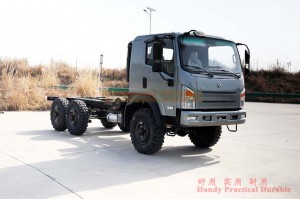

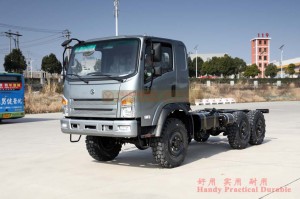

Dongfeng 6*6 Flat Head Puma Series Off-road Light Duty Chassis

Short Description:


Product Detail

Product Tags

Product Description

Dongfeng 6*6 Flat Head  EQ2082 Road Vehicle Chassis

Product Parameter

Basic Configuration
Drive Mode 6×6
Engine Cummins B190 33
Gearbox Mechanical Manual eight speed
Transfer case High-low speed
Cab Three seats
Axle Max. Load 2.7Tons/2.7Tons/2.7Tons (Front/Mid/Rear)
Tyre 11R18(6+1)
Electrical Appliance 24V Circuit system
Performance Parameter
Overall Dimension(mm) 6260 × 2520 × 2680(Length×Width×Height)
Plate size(mm) 860 × 232 ×75
Curb Weight(kg) 5620
Max. Power(kW/rpm) 125 Max. Torque(N.m) 560
Wheelbase(mm) 1680+1996+1996 Displacement(L) 5.9
Approach Angle (°) 38 Departure Angle (°) 18

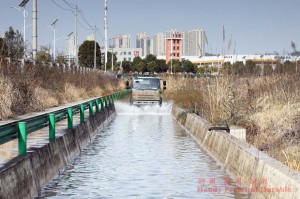

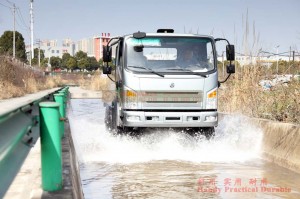

Ground Clearance(mm) 280 Fording depth (mm) 535
Max. Speed(km/h) 85 Tank Capacity(L) 160

This parameter is for reference only. The margin of error is plus or minus three percentage points.
