Dongfeng 6*6 flathead off-road truck–EQ2082 diesel off-road truck–Dongfeng 240 civilian off-road transporter exported
Product Description

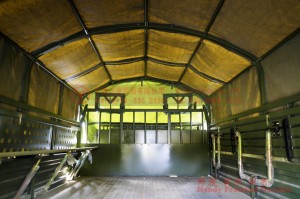

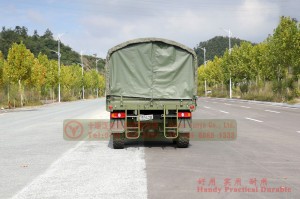

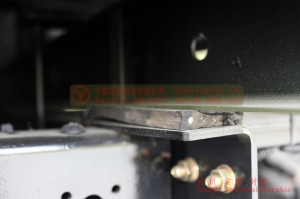

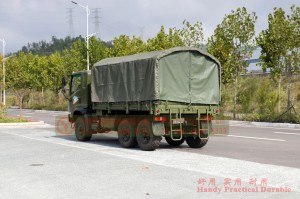

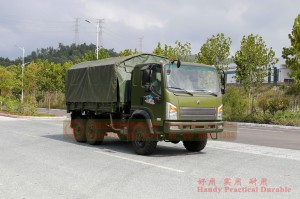

“Bobcat 6×6 off-road truck is improved on the basis of Dongfeng classic model EQ2082E6D two and a half tons long head diesel off-road truck. The cab adopts flat head one row and half cab, which is comfortable and luxurious with spacious vision. With the same length, it is more powerful, and 300L brake cooling water tank and large-capacity tool box are added. The bottom plate of the cargo box is made of pure iron with anti-skid pattern. Folding seats are installed on both side panels, and there are 2 folding climbing ladders at the rear.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins B170 33 |
| Gearbox | Mechanical Manual six speed |
| Transfer case | High-low speed |
| Cab | Flathead one and a half row |
| Axle | Max. Load 2.5Tons/2.5Tons/2.5Tons (Front/Middle/Rear) |

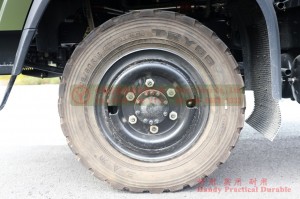

| Tyre | 305/80R18 (6 + 1) |
| Circuit | 24V circuit system |
| Optional | Air conditioner |
| Other | Buckets, oil drums, fire extinguishers, vehicle tools, tarpaulin poles |
| Performance Parameter | |||
| Overall Dimension(mm) | 6720 × 2480 × 3320(Length×Width×Height) | ||
| Cargobox Dimension(mm) | 3600 × 2300 × 800(Length×Width×Height) | ||
| Total Mass(kg) | 7800 | Curb Weight(kg) | 5250 |
| Max. Power(kW/rpm) | 125 | Axlebase(mm) | 1774 |
| Wheelbase(mm) | 3130+1065 | Displacement(L) | 5.9 |
| Approach Angle (°) | 26 | Departure Angle (°) | 43 |
| Ground Clearance(mm) | 285 | Fording depth (mm) | 1100 |
| Max. Speed(km/h) | 87 | Tank Capacity(L) | 160 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
