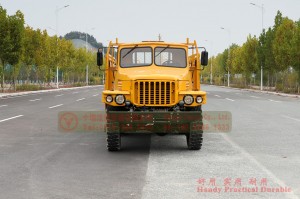

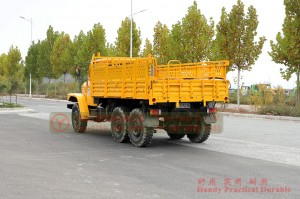

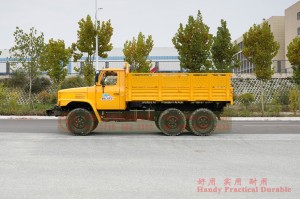

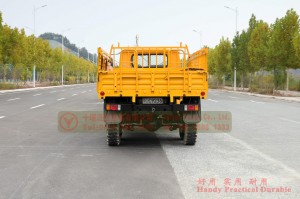

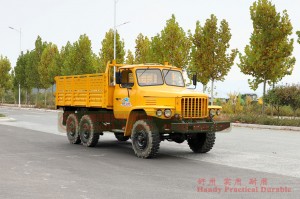

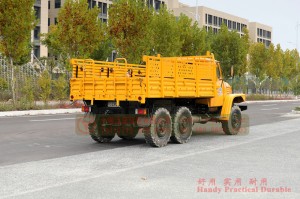

Dongfeng 6*6 long head double-glazed diesel truck–EQ240 four-ton civilian off-road truck–EQ2082 pointed Y25 off-road troop-carrying vehicle
Product Description

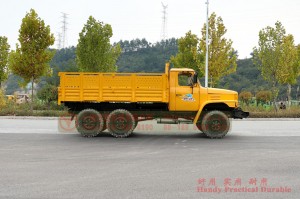

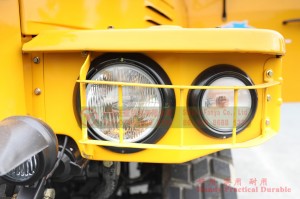

The six-wheel-drive diesel off-road chassis of the Dongfeng Classic model, which was originally for the special use of the army, is now available in the civilian version. Cold start, anti-aircraft lights, dual fuel tanks, winches, protective nets, tractors and other special equipment, designed for harsh environments, and all the performance is in line with the military off-road vehicle standards. The chassis is suitable to be converted into general cargo trucks, dump trucks, sprinkler trucks, fuel trucks, animal husbandry trucks, barn trucks, residential trucks and other conventional models for civilian use, and it can also be converted into troop carriers, command trucks, cooking trucks and other military models.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins B170 33 |
| Gearbox | Mechanical Manual five speed |
| Transfer case | High-low speed |

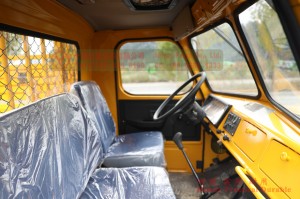

| Cab | Three seats |

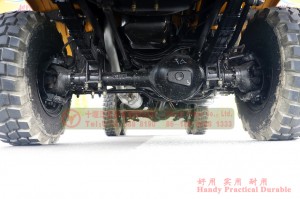

| Axle | Max. Load 2.5Tons/2.5Tons/2.5Tons (Front/Middle/Rear) |
| Tyre | 11R18 (6 + 1) |
| Frame | Steel plate springs 9/13 |
| Circuit | 24V Circuit System |
| Optional | Hydraulic clutch power, hydraulic steering power, exhaust brake |
| Other | Buckets, oil drums, fire extinguishers, vehicle tools, tarpaulin poles |
| Performance Parameter | |||
| Overall Dimension(mm) | 6430 × 2380 × 2580(Length×Width×Height) | ||

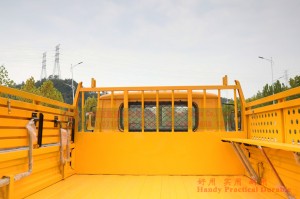

| Cargobox Dimension (mm) | 3600 × 2300 × 900(Length×Width×Height) | ||
| Total Mass(kg) | 7800 | Curb Weight(kg) | 5090 |
| Max. Power(kW/rpm) | 125 | Axlebase(mm) | 1780 |
| Parking Slope(％) | 40 | Replacement(L) | 5.9 |
| Wheelbase(mm) | 3190+1100 | Maximum Climbing Degree(％) | 60 |
| Approach Angle (°) | 37 | Departure Angle (°) | 46 |
| Ground Clearance(mm) | 280 | Fording depth (mm) | 1100 |
| Max. Speed(km/h) | 87 | Tank Capacity(L) | 140+70 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
