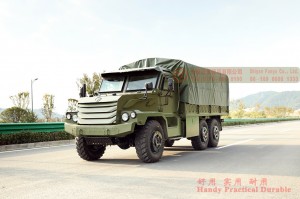

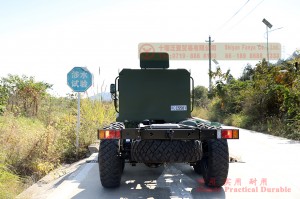

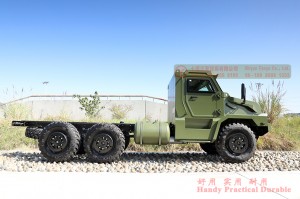

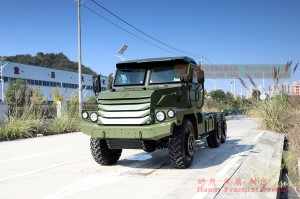

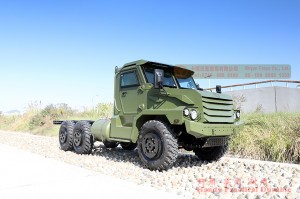

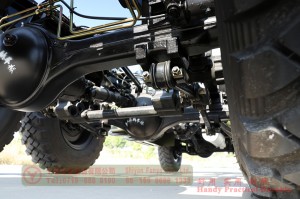

Six-wheel-drive Armored Bullet-proof Transport Vehicle Chassis
Product Description

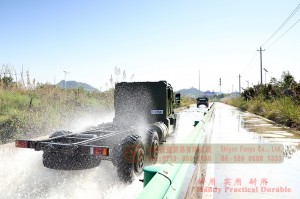

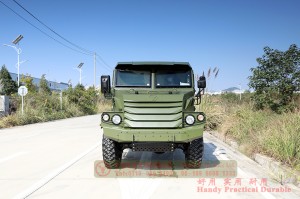

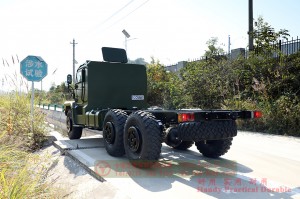

6WD armored bullet-proof transport vehicle chassis.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins B210 33 |
| Gearbox | Manual five speed |
| Transfer case | High-low speed |

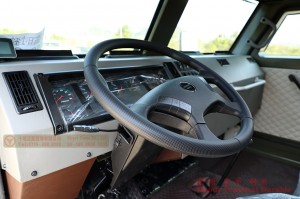

| Cabin | Enhanced protective long-head single-row, 3 seats |
| Axle | Max. Load 3.5Tons/3.5Tons (Front/Rear) |
| Tyre | 12R20 |
| Leaf spring | 8/12, damping shock absorber |
| Performance Parameter | |||
| Overall Dimension(mm) | 7500 × 2450 × 2820(Length×Width×Height) | ||
| Total Mass(kg) | 14000 | Curb Weight(kg) | 8480 |
| Wheelbase(mm) | 3475+1250 | Displacement(L) | 5.88 |
| Wheel Track(mm) | 1876/1870/1870 | Cylinder | 6 |
| Approach Angle (°) | 35 | Departure Angle (°) | 34 |
| Ground Clearance(mm) | 305 | Fording Depth (mm) | 550 |
| Trench Crossing Capacity(mm) | 700 | Vertical Obstacle Clearance (mm) | 400 |
| Front Overhang(mm) | 1140 | Rear Overhang(mm) | 1635 |
| Driving range(km) | ≥500 | 0~50km/h Acceleration Time(s) | ≤30 |

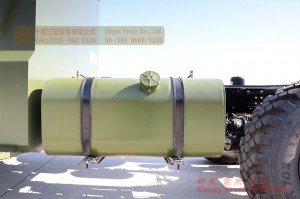

| Max. Speed(km/h) | 90 | Tank Capacity(L) | 280 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
