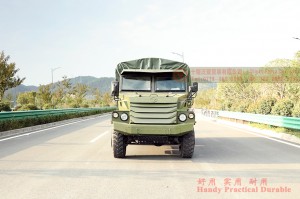

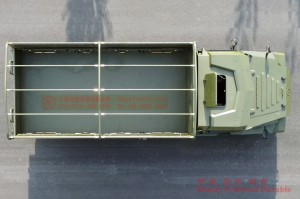

Six-wheel-drive Armored Bullet-proof Transport Vehicle
Product Description

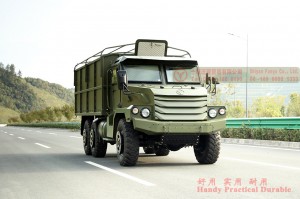

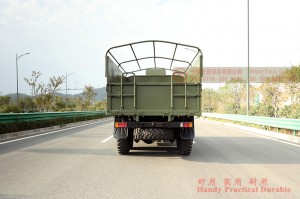

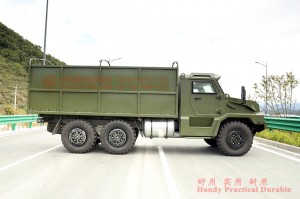

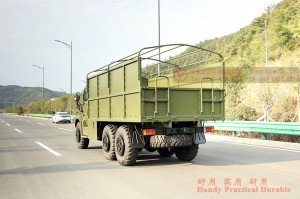

6WD Armored Bullet-proof Transport Vehicle.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins B210 33 |
| Gearbox | Manual five speed |
| Transfer case | High-low speed |

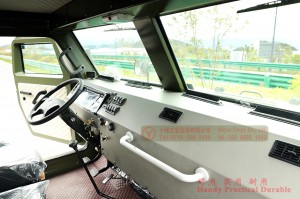

| Cabin | Enhanced protective long-head single-row, 3 seats |
| Axle | Max. Load 3.5Tons/3.5Tons (Front/Rear) |
| Tyre | 12R20 |
| Leaf spring | 8/12, damping shock absorber |
| Safe guard | 4.5-millimeter-thick armored plates over the vehicle’s body, bottom, and top areas; Bullet-proof front, left and right windows in the cabin |
| Accessories | Tarpaulin with sheet trestles, radiator, air conditioner, car tools; Rear view camera and winch are to be installed upon request |
| Performance Parameter | |||
| Overall Dimension(mm) | 7500 × 2460 × 2820(Length×Width×Height) | ||
| Cab Dimension(mm) | 4650 × 2400 ×1630(Length×Width×Height) | ||
| Total Mass(kg) | 14000 | Curb Weight(kg) | 8480 |
| Payload(kg) | 5300 | Traction Mass(kg) | 3000 |
| Max. Power(kW/rpm) | 155 | Max. Torque(N.m) | 700 |
| Wheelbase(mm) | 3475+1250 | Displacement(L) | 5.88 |
| Wheel Track(mm) | 1876/1870/1870 | Cylinder | 6 |
| Approach Angle (°) | 35 | Departure Angle (°) | 34 |
| Ground Clearance(mm) | 305 | Fording Depth (mm) | 1000 |
| Trench Crossing Capacity(mm) | 700 | Vertical Obstacle Clearance (mm) | 400 |
| Front Overhang(mm) | 1140 | Rear Overhang(mm) | 1635 |
| Driving range(km) | ≥500 | 0~50km/h Acceleration Time(s) | ≤30 |
| Max. Speed(km/h) | 90 | Tank Capacity(L) | 280 |
| Minimum diameter of turning circle(m) | ≤18.8 | Member | 2~35 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
