Dongfeng 6×6 Off-road Heavy Duty Special Purpose Vehicle Chassis–375HP Dongfeng Heavy Duty Truck Three Axle Vehicle–Off-road Long Distance Truck Chassis Conversion
Product Description

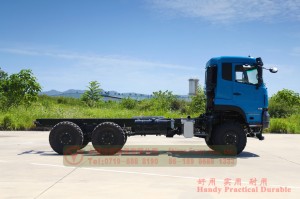

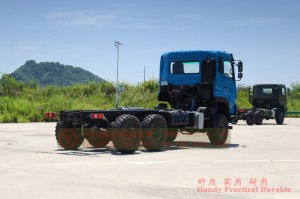

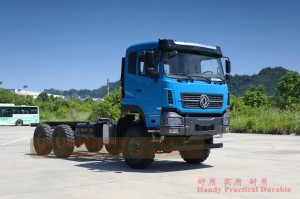

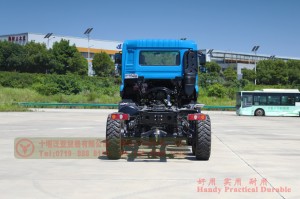

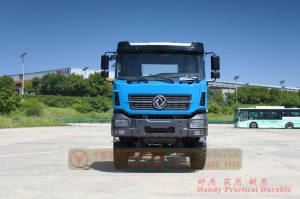

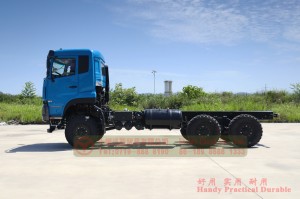

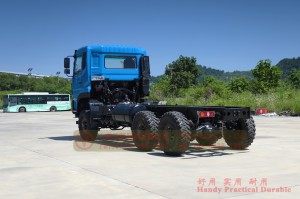

The 6×6 Dongfeng heavy duty special purpose vehicle chassis, with a total mass of up to 25 tons, and six-wheel drive makes it possible to drive in mountain roads, forests and other areas, and is suitable for conversion into cargo trucks, dump trucks, concrete mixer trucks, and other special heavy duty vehicles.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins L375 33 |
| Gearbox | Manual twelve speed |
| Transfer case | Time-shift six-wheel drive with high and low speed |
| Frame | 860×300mm, double reinforced |
| Axle | Max. Load 7Tons/13Tons/13Tons (Front/Middle/Rear) |
| Tyre | 12.5-20 Herringbone Tread Off-Road Specialty Tires (6+1) |
| Suspension | Steel plate spring 9/10 pieces |
| Circuit | 24V circuit system |
| Performance Parameter | |||
| Chassis Dimension(mm) | 7657 × 2417 × 3380(Length×Width×Height) | ||
| Modification size(mm) | ≥5400 | ||
| Upper frame plane off the ground(mm) | 1170(extremity) | ||
| Total Mass(kg) | 25000 | Curb Weight(kg) | 9240 |
| Max. Power(kW/rpm) | 250 | Max. Torque(N.m) | 640 |
| Wheelbase(mm) | 3600+1350 | Maximum Climbing Degree(％) | 60 |
| Approach Angle (°) | 25 | Departure Angle (°) | 21 |
| Ground Clearance(mm) | 520 | Fording depth (mm) | 1230 |
| Max. Speed(km/h) | ≥87 | Tank Capacity(L) | 300 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
