Dongfeng 8-meter bus–Dongfeng 6*6 bus–190 hp city commuter bus–Dongfeng 30-seat bus
Product Description

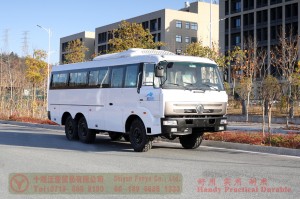

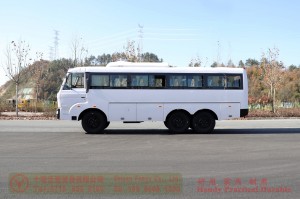

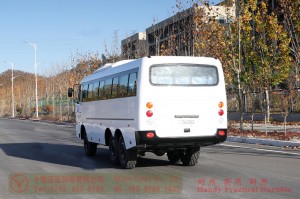

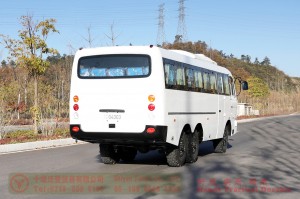

The bus is used to transport people between towns and cities as the main means of transportation, often on highways and national roads, compared to rural mountain roads to be much smoother and lighter than carrying people than cargo, so usually the bus designers will focus on comfort. In mountain roads, deserts and other areas, ordinary buses will be driving very hard, our company has developed a special six-wheel drive off-road bus to facilitate the transportation of passengers under adverse road conditions.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins B190 33 |
| Gearbox | Mechanical Manual Six Speed |
| Transfer case | High-low speed |

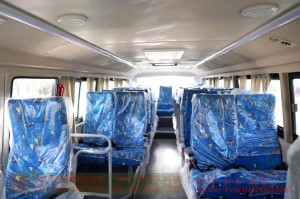

| Members | 28+2 |
| Axle | Max. Load3.1Tons/3.1Tons/3.1Tons (Front/Middle/Rear) |

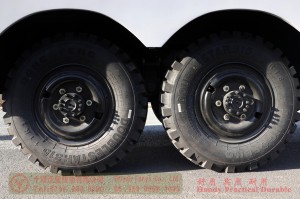

| Tyre | 11R18 (6 + 1) |
| Suspension | Steel plate spring 10/13 pieces |

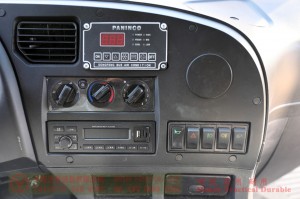

| Other | Including overhead air-conditioning, curtains, folding armrests, escape sunroof, safety hammer |
| Performance Parameter | |||
| Overall Dimension(mm) | 8100 × 2300 × 3100(Length×Width×Height) | ||
| Total Mass(kg) | 9300 | No. of cylinders | 6 |
| Max. Power(kW/rpm) | 140 | Max. Speed(km/h) | 87 |
| Wheelbase(mm) | 3500+1080 | Displacement(L) | 5.9 |
| Approach Angle (°) | 22 | Departure Angle (°) | 21 |
| High in passenger area(mm) | 1820 | Fording depth (mm) | 630 |
| Max. Speed(km/h) | 85 | Tank Capacity(L) | 150 |
| Front suspension(mm) | 1720 | Rear suspension(mm) | 1950 |
| Min. Ground Clearance(mm) | 320 | Fording Depth(mm) | 410 |
| Axlebase(mm) | 1774 | Curb Weight(kg) | 6860 |
| High in the passenger area(mm) | 1730 | ||
This parameter is for reference only. The margin of error is plus or minus three percentage points.
