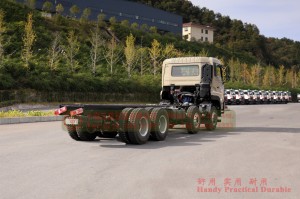

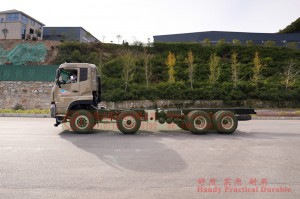

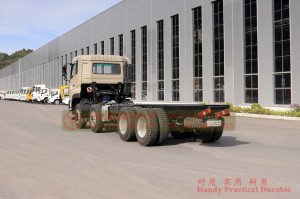

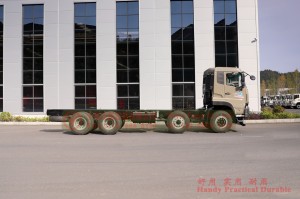

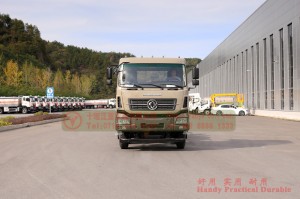

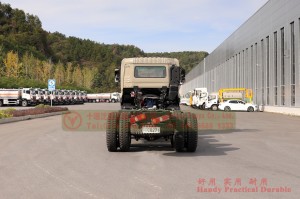

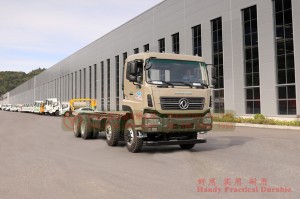

Dongfeng 8*4 flatbed truck chassis–Dongfeng Hercules 10 meters flatbed truck chassis–30 tons of special truck chassis conversion
Product Description
The 8*4 Dongfeng heavy duty special purpose vehicle chassis, with a total mass of up to 30 tons, featuring an updated design with superb load capacity, it also boasts excellent agility and maneuverability. Whether on rough roads or in tight spaces, it allows you to transport goods with ease.
Product Parameter
| Basic Configuration | |
| Drive Mode | 8×4 |

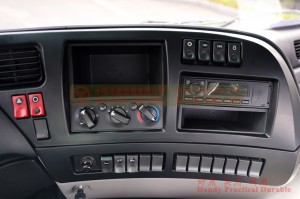

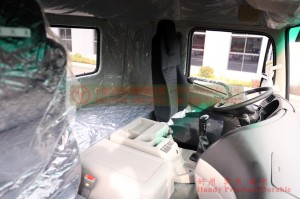

| Cab | Dongfeng flathead one and a half |
| Engine | WP10.375E32 |
| Gearbox | Manual twelve speed |

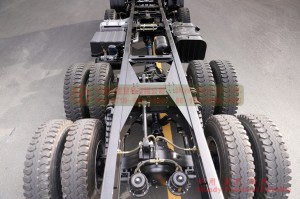

| Frame | 860×300mm, 8+6 |
| Axle | Max. Load 5Tons/5Tons/10Tons/10Tons (Front/Middle/Rear) |

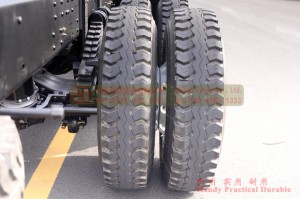

| Tyre | 11.00R20(12+1) |
| Circuit | 24V circuit system |
| Performance Parameter | |||
| Chassis Dimension(mm) | 10065 × 2530 × 3270 (Length×Width×Height) | ||
| Modification size(mm) | ≥7570 | ||
| Upper frame plane off the ground(mm) | 1185 | ||
| Max. Power(kW/rpm) | 250 | Replacement(L) | 9.726 |
| Wheelbase(mm) | 2035+3250+1330 | Overrun height(mm) | 445 |
| Approach Angle (°) | 13 | Departure Angle (°) | 17 |
| Front Suspension(mm) | 1480 | Rear Suspension(mm) | 1970 |
| Ground Clearance(mm) | 285 | Fording depth (mm) | 660 |
| Max. Speed(km/h) | ≥85 | Tank Capacity(L) | 280 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
