Product Description

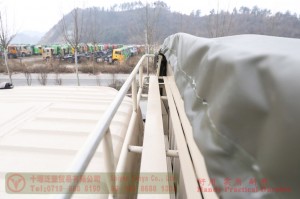

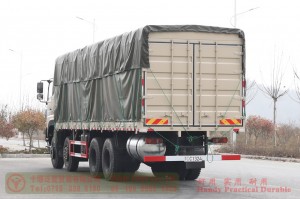

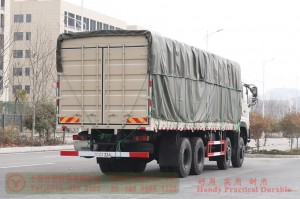

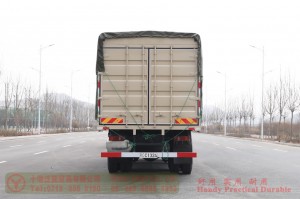

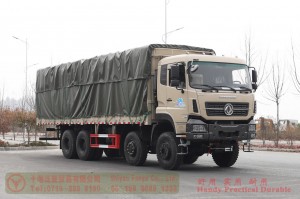

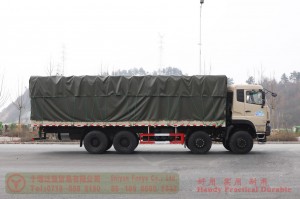

Warehouse type transporter, compartments in the external design, strive for beautiful shape, internal structure is reasonable, advanced technology, the use of high-quality steel for the skeleton, welded in strict accordance with industry standards, the compartment plate by the fixture pressed into the corrugated type, with high strength, at the same time, has a light weight, the warehouse grille bars can be half-dismantled, fully dismantled and lifted at will, convenient, practical, safe and reliable and other characteristics. According to the requirements of the user to design and produce double-decker fresh animal transportation trucks, fruits and vegetables transportation trucks. Suitable for the majority of users of short- and medium-distance road transportation, can also be used as a general cargo vehicle, in the highly developed road transportation industry, especially the rapid development of modern logistics industry. The warehouse truck will be rapidly promoted and popularized. It is an economical product developed for urban and inter-city logistics and transportation market.
Product Parameter
| Basic Configuration | |
| Drive Mode | 8×8 |

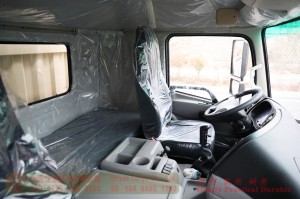

| Cab | Dongfeng flathead one and a half |
| Engine | ISM 450 |
| Gearbox | Manual ten speed |
| Transmission | High and low speed |
| Frame | 780×244mm, double layer |
| Axle | Max. Load 6.5Tons/6.5Tons/6.5Tons/6.5Tons (Front/Middle/Rear) |

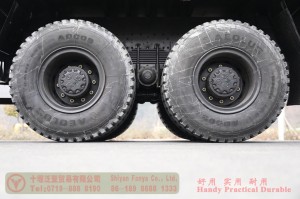

| Tyre | 12.00R20(12+1) |

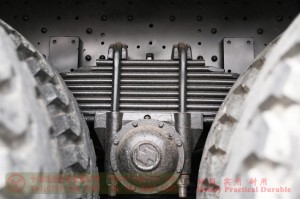

| Suspension | Steel Spring Plate,9/9/10 |
| Performance Parameter | |||
| Overall Dimension(mm) | 11790 × 2600 × 3780 (Length×Width×Height) | ||
| Cargobox Dimension(mm) | 9000 × 2450 × 1920 (Length×Width×Height) | ||
| Axlebase(mm) | 2055/1810 | ||
| Max. Power(kW/rpm) | 331 | Total Mass(kg) | 31000 |
| Wheelbase(mm) | 1910+3520+1350 | Overrun height(mm) | 520 |
| Approach Angle (°) | 21 | Departure Angle (°) | 24 |
| Curb Weight(kg) | 14740 | Displacement(L) | 10.8 |
| Ground Clearance(mm) | 350 | Fording depth (mm) | 770 |

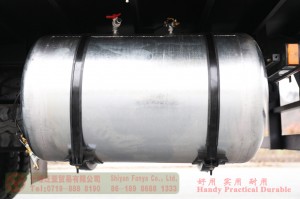

| Max. Speed(km/h) | ≥85 | Tank Capacity(L) | 420 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
