Dongfeng all-wheel-drive high-horsepower off-road transportation chassis–Dongfeng 450 hp flathead truck conversion manufacturer–6*6 flathead off-road truck chassis
Product Description

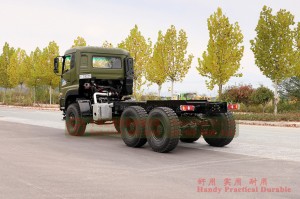

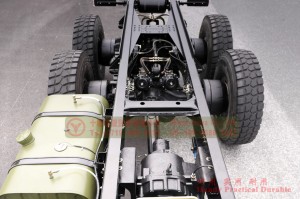

The 6*6 Dongfeng heavy duty special purpose vehicle chassis, with a total mass of up to 43 tons, and six-wheel drive makes it possible to drive in mountain roads, forests and other areas, and is suitable for conversion into cargo trucks, dump trucks, concrete mixer trucks, and other special heavy duty vehicles.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins ISM 450 |
| Gearbox | Manual ten speed |
| Transfer case | High and low speed |
| Frame | 860×300mm, 8+8 |
| Axle | Max. Load 13Tons/15Tons/15Tons (Front/Middle/Rear) |

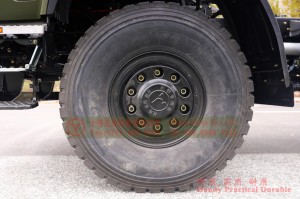

| Tyre | 14.00R20(6+1) |
| Suspension | Steel plate spring 9/10 pieces |
| Circuit | 24V circuit system |
| Performance Parameter | |||
| Chassis Dimension(mm) | 7840 × 2460 × 3470(Length×Width×Height) | ||
| Modification size(mm) | ≥5320 | ||
| Upper frame plane off the ground(mm) | 1360 | ||
| Total Mass(kg) | 25000 | Curb Weight(kg) | 9700 |
| Max. Power(kW/rpm) | 331 | Replacement(L) | 10.8 |
| Wheelbase(mm) | 4000+1350 | Overrun height(mm) | 505 |
| Approach Angle (°) | 19 | Departure Angle (°) | 47 |
| Front Suspension(mm) | 1490 | Rear Suspension(mm) | 1000 |
| Ground Clearance(mm) | 390 | Fording depth (mm) | 810 |
| Max. Speed(km/h) | ≥87 | Tank Capacity(L) | 300 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
