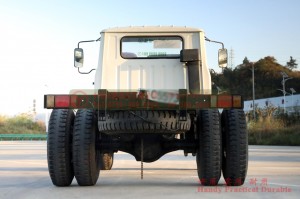

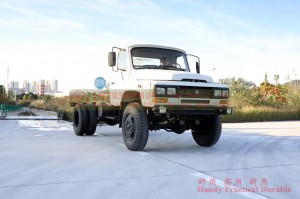

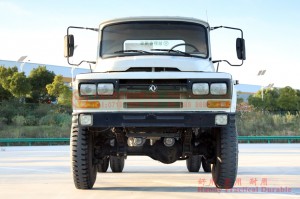

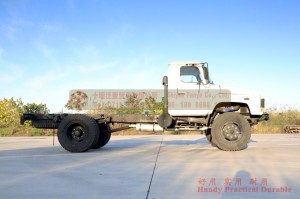

Dongfeng EQ1093 4WD 4*4 Classic Model White Color Chassis
Product Description

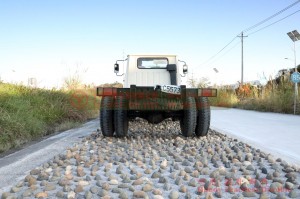

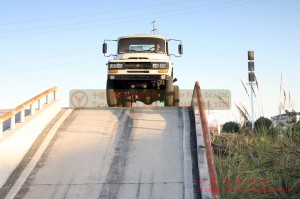

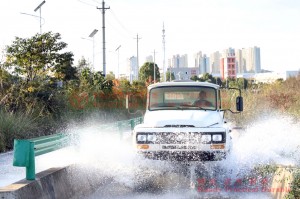

Dongfeng EQ1093 Four Drive Off-road Truck has been a classic mature model of Dongfeng for many years. The car is perfect for off-road conditions, driving in muddy, ice and snow section. The field of view is wide, the driving experience is comfortable, or it can also be modified into dump trucks, sprinkles, oil, rides, etc., which are highly concerned by many users at home and abroad.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | Cummins B170 33 |
| Gearbox | Mechanical Manual five speed |

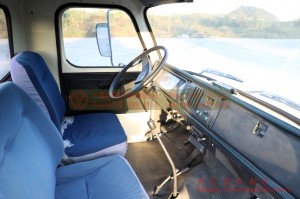

| Cab | Dengfeng pointed single row |

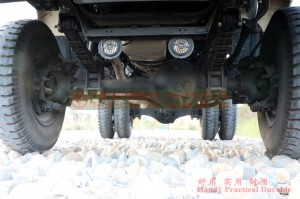

| Axle | 2.7Tons/7Tons (Front/Rear) |

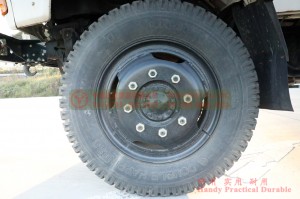

| Tyre | 9.00-20 (6 + 1) |
| Electric circuits | 24V |
| Frame | 860mm stamped riveted frame construction |
| Performance Parameter | |||
| Overall Dimension(mm) | 6740 × 2150 × 2415(Length×Width×Height) | ||
| Total Mass(kg) | 9700 | Max. Power(kW/rpm) | 140 |
| Wheelbase(mm) | 1820+1800 | Displacement(L) | 5.9 |
| Approach Angle (°) | 38 | Departure Angle (°) | 32 |
| Ground Clearance(mm) | 515 | Fording depth (mm) | 630 |
| Max. Speed(km/h) | 88 | Tank Capacity(L) | 160 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
