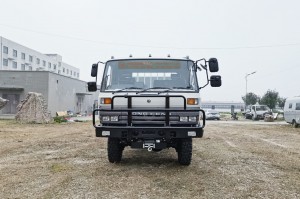

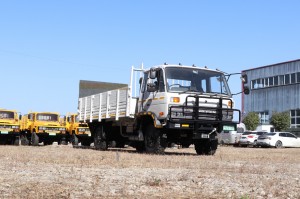

Dongfeng EQ2070 Six Drive Off-road trucks with hydraulic tail plate
Product Description
Dongfeng EQ2070 Six Drive Flat Head Off-road Truck has been a classic mature model of Dongfeng for many years, the car is perfect for off-road road conditions, driving in muddy, ice and snow section. At the same time, there is also a cold start, air defense lamp, sub-tank, machine barrel, bucket, tarpaulin, tool box, gun, etc., can be traged by the artillery. The field of view is wide, the driving experience is comfortable, or it can also be modified into dump trucks, sprinkles, oil, rides, etc., which are highly concerned by many users at home and abroad.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | Cummins B140 33 |
| Gearbox | Mechanical Manual five speed |
| Transfer case | Part-time four wheel drive, high-low speed |
| Cab | Dongfeng flat head one and a half row, three seats and a sleeper |
| Axle | Max. Load 3.5Tons/3.6Tons (Front/Rear) |
| Tyre | 11R18 (4+1) |

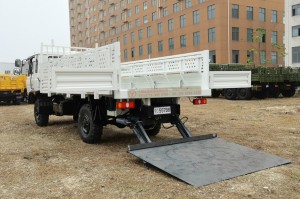

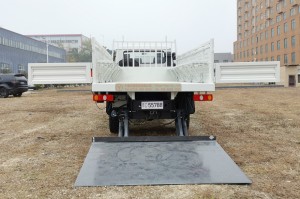

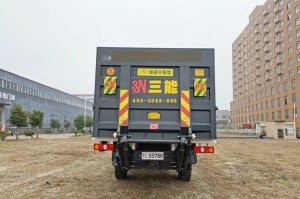

| Other | Electric winchThe tail of the cargo container has an electric lifting platform, the platform size is 800 × 2340mmUp to 1.5 tons of goods can be loadedThe cargo box tail panel adopts two-way pairing structure, up to 180 °

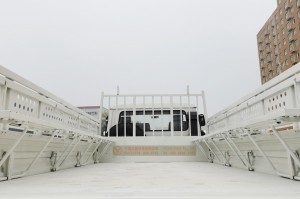

The left and right side panels in the container have a seat |
| Performance Parameter | |||
| Overall Dimension(mm) | 7800×2500×3050(Length×Width×Height) | ||
| Cargo Dimension(mm) | 5000×2300×900 | ||
| Total Mass(kg) | 9200 | Curb Weight(kg) | 5620 |
| Max. Power(kW/rpm) | 103/2500 | Tank Capacity(L) | 160+60 |
| Wheelbase(mm) | 4175 | Displacement(L) | 3.9 |
| Approach Angle (°) | 22.9 | Departure Angle (°) | 17 |
| Ground Clearance(mm) | ≤300 | Plane on the frame (mm) | 980 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
