Dongfeng EQ2070 Four Drive Flat Head Off-road Truck Chassis
Product Description

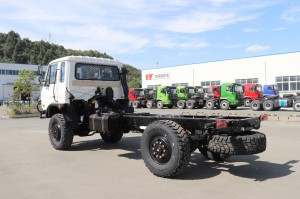

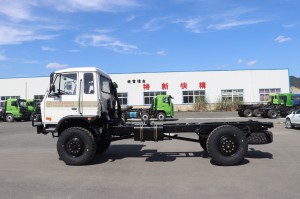

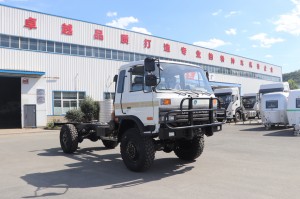

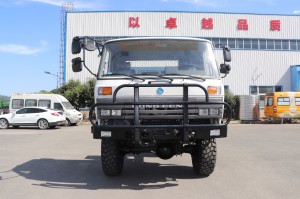

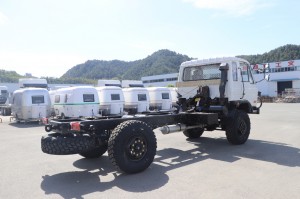

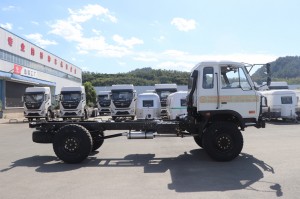

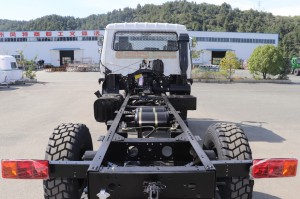

Dongfeng EQ2070G off-road carrier as a classic domestic military vehicle, performance stability is the biggest feature of this vehicle, making the car favored by people around the world. The chassis uses Dongfeng 153 cab, all of which use military standards. As a military chassis, long-term off-road performance is the most basic advantage. In various advantages, the chassis is often used to modify the green sprinkler , Dump trucks, garbage trucks, vanes, etc.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins B190 33 |
| Gearbox | Mechanical Manual five speed |
| Transfer case | Part-time four wheel drive, high-low speed |

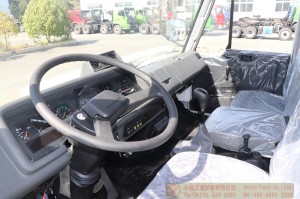

| Cab | Dongfeng flat head single row, three seats |
| Axle | Max. Load 3.5Tons/3.5Tons (Front/Rear) |
| Tyre | 12.5R20 (4+1) |
| Other | Hydraulic steering power, exhaust braking |
| Performance Parameter | |||
| Overall Dimension(mm) | 7000×2470×2820(Length×Width×Height) | ||
| Modification Dimension(mm) | 4700 | ||
| Total Mass(kg) | 7910 | Curb Weight(kg) | 4550 |
| Max. Power(kW/rpm) | 140/2500 | Tank Capacity(L) | 160 |
| Wheelbase(mm) | 4200 | Displacement(L) | 5.9 |
| Approach Angle (°) | 33 | Departure Angle (°) | 36 |
| Ground Clearance(mm) | 310 | Fording depth (mm) | 550 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
