Dongfeng EQ2100 six-wheel-drive off-road chassis – 6×6 pointed EQ245 troop-carrying truck chassis for export – long head 190 hp military vehicle special conversion
Product Description

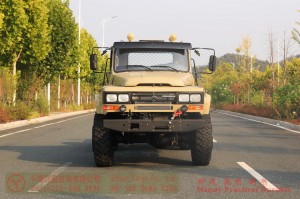

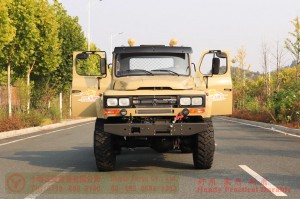

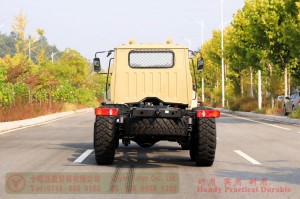

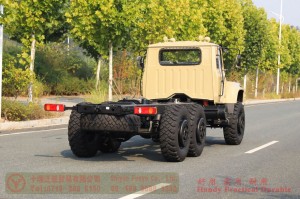

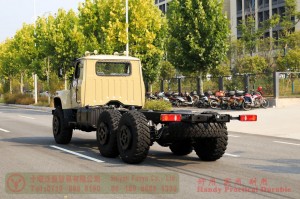

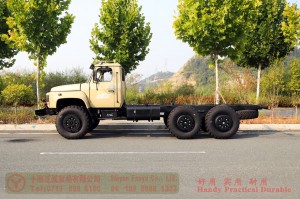

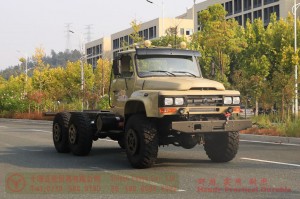

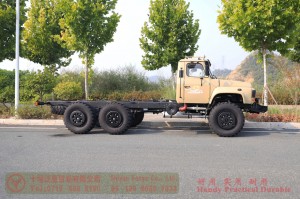

Dongfeng EQ2100E6DJ is a six wheel drive long head diesel chassis, which saves energy and fuel when driving in 6*4 mode on flat roads, and has enough power when driving in 6*6 mode on off-road sections. Dongfeng 2100 pointed off-road truck chassis is a large off-road vehicle widely used in engineering, military, rescue and other fields. Its unique tip design, strong off-road performance and reliable quality assurance make it perform well in various harsh environments.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins B190 33 |
| Gearbox | Mechanical Manual six speed |
| Transfer case | High-low speed |
| Cab | Three seats |
| Axle | Max. Load 3.6Tons/3.6Tons/3.6Tons (Front/Middle/Rear) |
| Tyre | 12R20 (6 + 1) |
| Circuit | 24V circuit system |
| Frame | 860*232mm |
| Other | With towing hook, electrical connector, air brake connector, cold start |
| Optional | Backup camera, secondary fuel tank, anti-aircraft lights, winch |
| Performance Parameter | |||
| Overall Dimension(mm) | 7680 × 2355 × 2480(Length×Width×Height) | ||
| Modification size(mm) | ≥4685 | ||
| Total Mass(kg) | 10800 | Curb Weight(kg) | 5680 |
| Max. Power(kW/rpm) | 140 | Axlebase(mm) | 3650+1230 |
| Wheelbase(mm) | 1960 | Maximum Climbing Degree(%) | 60 |
| Approach Angle (°) | 30 | Departure Angle (°) | 18 |
| Ground Clearance(mm) | 315 | Fording depth (mm) | 1225 |
| Max. Speed(km/h) | ≥87 | Tank Capacity(L) | 300 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
