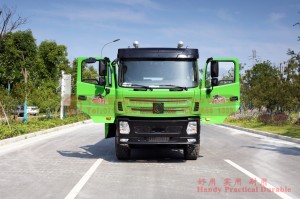

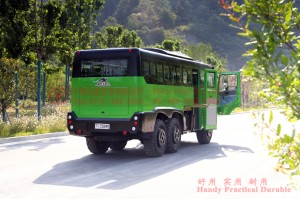

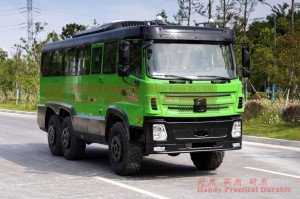

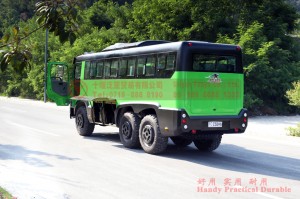

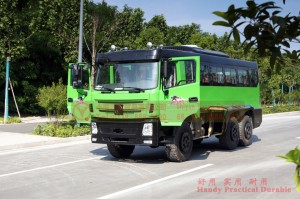

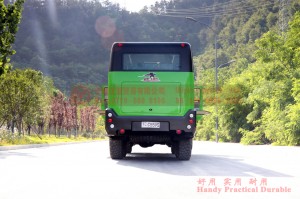

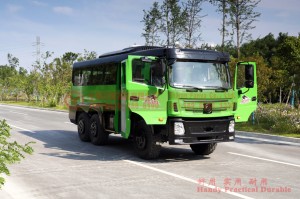

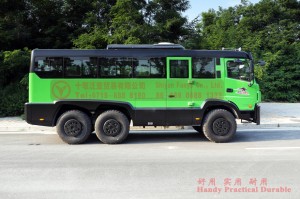

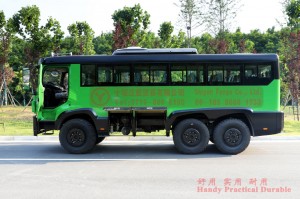

Dongfeng EQ2102 chassis modified off-road bus–Dongfeng 6×6 all-drive off-road bus
Product Description
Dongfeng National III emission standard all-drive off-road bus, Dongfeng front and rear axle drive off-road bus, Dongfeng Cummins 260 hp engine, with 12.5R20 tires, the vehicle in the field and low-grade road capacity, the advantage of faster speed, stability, is the best use of oil exploration, forest firefighting, field mining and power engineering models.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins C260 33 |
| Gearbox | Mechanical Manual eight speed |
| Transfer case | High-low speed |
| Frame(mm) | 860*232 |
| Cab | Flush welded one-piece |
| No. of members | 25+2 |
| Axle | Max. Load 3.5Tons/3.5Tons/3.5Tons (Front/Middle/Rear) |
| Tyre | 12.5R20 (6 + 1) |
| Suspension | Steel plate spring 10/12 pieces |
| Performance Parameter | |||
| Overall Dimension(mm) | 7785 × 2240 × 3100(Length×Width×Height) | ||
| High in the passenger area(mm) | 1820 | ||
| Total Mass(kg) | 8170 | Max. Speed(km/h) | 85 |
| Max. Power(kW/rpm) | 155 | Tank Capacity(L) | 400 |
| Wheelbase(mm) | 3500+1250 | Displacement(L) | 5.9 |
| Approach Angle (°) | 19 | Departure Angle (°) | 21 |
| Maximum climbing degree(％) | 60 | Fording depth (mm) | 630 |
| Front suspension(mm) | 1485 | Rear suspesion(mm) | 1550 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
