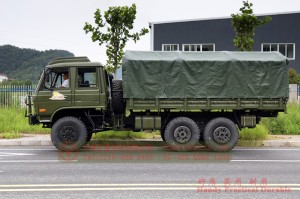

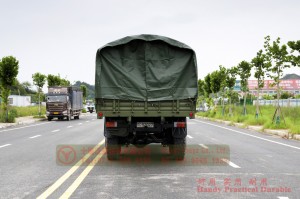

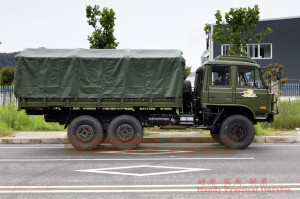

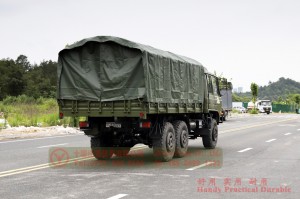

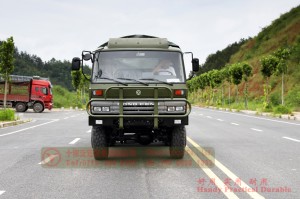

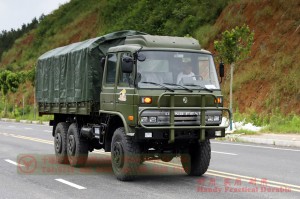

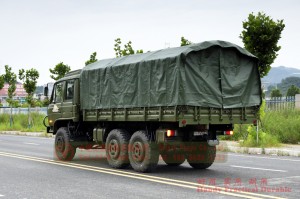

Dongfeng EQ2102N double-row off-road truck–6*6 all-wheel-drive 153 double-row high-capacity personnel carrier–Dongfeng EQ246 three-and-a-half-ton off-road truck configuration
Product Description
EQ2102N is a higher version of the EQ2102 series, with a double cab can take 5 people, the roof is installed with cooling air conditioning, tires also have automatic inflation and deflation function, the engine can be automatically heated (cold start system).
Product Parameter
| Basic Configuration | |
| Engine | Cummins B210 33 |
| Gearbox | Mechanical Manual six speed |
| Transfer case | Time-sharing 6WD with high and low gears |
| Axle | Max. Load 3.5Tons/3.5Tons/3.5Tons (Front/Middle/Rear) |
| Tyre | 12.5R20 (6 + 1) |
| Circuit system | 24V circuit system |
| Protection type | Rear window with protective net and front bumper |
| Traction device | With traction hook, electrical connector, air brake connector |
| Other | Oil bucket, water bucket, tools with the car, fire extinguisher, tarpaulin pole |
| Optional items | Front mounted winch, right-hand drive cab, reverse camera |
| Performance Parameter | |||
| Overall Dimension(mm) | 8095×2470×3250(Length×Width×Height) | ||
| Inside dimensions of cargo box(mm) | 4670×2300×900(Length×Width×Height) | ||
| Total Mass(kg) | 10850 | Curb Weight(kg) | 7030 |
| Wheelbase(mm) | 3475+1250 | No. of members | 5 |
| Approach Angle (°) | 35 | Departure Angle (°) | 34 |
| Ground Clearance(mm) | 305 | Fording depth (mm) | 1000 |
| Traction quality(kg) | 4800 | Max. driving range (km) | ≥750 |
| Max. Speed(km/h) | ≥87 | Tank Capacity(L) | 140+70 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
