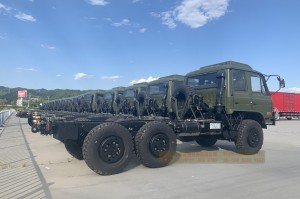

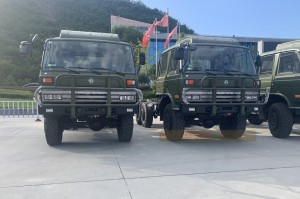

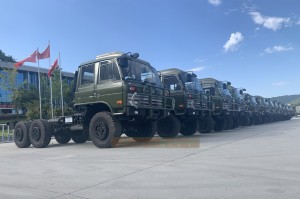

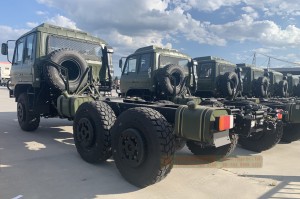

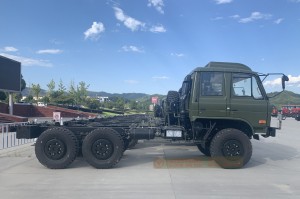

Dongfeng EQ2102NJ Six Drive Off-road Truck Chassis
Product Description
Dongfeng EQ2102N off-road carrier is a classic domestic military vehicle. The chassis uses Dongfeng 153 cab, all of which use military standards, as a military chassis, long-term off-road performance is the most basic, in various advantages, the chassis is often used to modify the green sprinkler , Dump trucks, garbage trucks, vanes, etc.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins B190 33 |
| Gearbox | Mechanical Manual six speed |
| Transfer case | High-low speed |

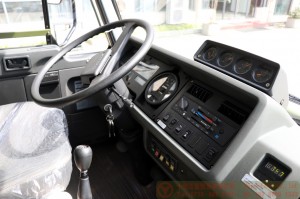

| Cab | Three seats, Dongfeng 153 flat head Double-row cabThere are 4 guns racks in the interior. Rear window strip protection net |
| Axle | Max. Load 3.7Tons/3.5Tons/3.5Tons (Front/Middle/Rear) |
| Tyre | 12.5R20 |
| Electrical appliance |
24V circuit system |
| Performance Parameter | |||
| Overall Dimension(mm) | 7200 × 2470 × 2890(Length×Width×Height) | ||
| Modification size(mm) | 4000 | ||
| Total Mass(kg) | 10850 | Curb Weight(kg) | 6000 |
| Max. Power(kW/rpm) | 140 | Max. Torque(N.m) | 640 |
| Wheelbase(mm) | 3470+1250 | Displacement(L) | 5.9 |
| Approach Angle (°) | 35 | Departure Angle (°) | 34 |
| Ground Clearance(mm) | 305 | Fording depth (mm) | 1035 |
| Max. Speed(km/h) | 90 | Tank Capacity(L) | 160+60 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
