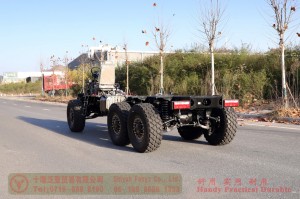

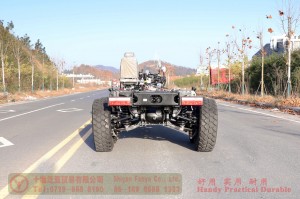

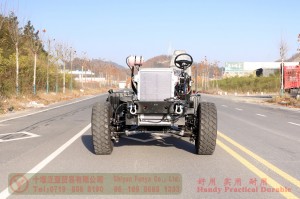

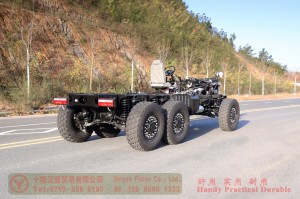

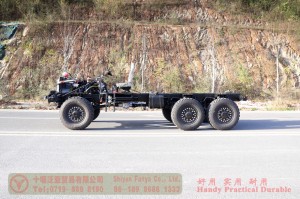

Dongfeng EQ245/EQ246 Class III Chassis–7.2m Convertible All-Wheel Drive Chassis–Dongfeng 6*6 Off-road Special Class III Chassis
Product Description
The 6*6 off-road vehicle class III chassis is a chassis model designed one-to-one by our company according to the customer’s requirements. After multi-faceted design, testing and perfecting, the chassis’ passability reaches the customer’s indexes. The chassis cab and top load are perfected by customers themselves, and will be exported to Africa for use.
Product Parameter
| Basic Configuration | |
| Engine | Cummins ISDe300 40 |
| Gearbox | Mechanical Manual six speed |
| Transmission | High and low speed |
| Axle | Max. Load 5Tons/5Tons/5Tons (Front/Middle/Rear) |

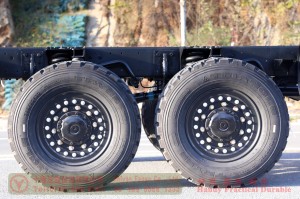

| Tyre | 365/80R20 |

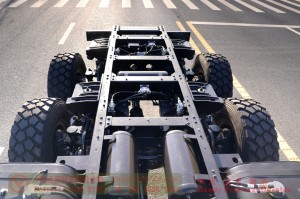

| Frame | 860×280，double layer |

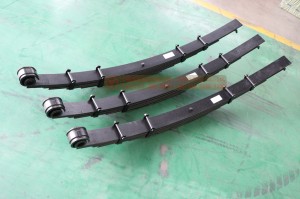

| Suspension | Independent suspension, shock absorbing springs |
| Performance Parameter | |||
| Type III chassis dimensions | 6935 × 2510× 2210(Length×Width×Height) | ||
| The upper plane of the rear end of the frame is off the ground(mm) | 1220 | ||
| Axlebase(mm) | 3720 | Wheelbase(mm) | 3600+1200 |
| Max. Power(kW/rpm) | 221 | Axlebase(mm) | 2060 |
| Max. torque(N.m) | 1100 | Displacement(L) | 6.7 |
| Approach Angle (°) | 35 | Departure Angle (°) | 46 |
| Front Suspension(mm) | 1210 | Rear Suspension(mm) | 925 |
| Ground Clearance(mm) | 650 | Fording depth (mm) | 540 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
