Dongfeng EQ3092 Four Drive Truck Chassis Modification
Product Description

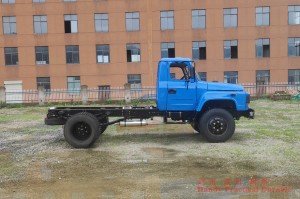

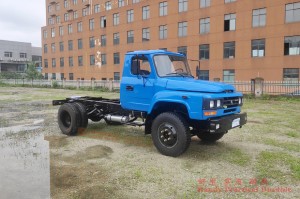

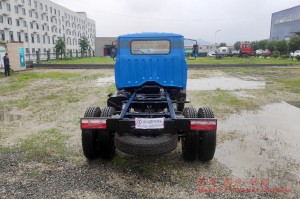

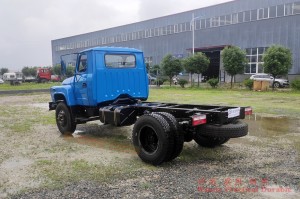

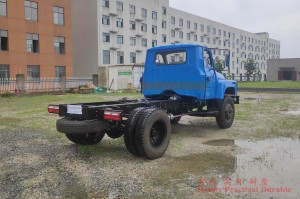

Dongfeng EQ3092 Four Drive Off-road Truck Chassis. This chassis can be modified to be truck, dump truck and many other kinds of off-road truck.
Product Parameter
Basic Configuration | |
Drive Mode | 4×4 |
Engine | 4102QBZL |
Gearbox | Mechanical Manual five speed |
Transfer case | High-low speed |
Cab | Three seats |
Axle | Max. Load 3Tons/6Tons (Front/Rear) |
Tyre | 8.25R20 (6 + 1) |
Electrical Appliance |
24V circuit system |
Performance Parameter | |||
Overall Dimension(mm) | 6340 × 2400 × 2385(Length×Width×Height) | ||
Modification size(mm) | 3150 | ||
Total Mass(kg) | 9000 | ||
Max. Power(kW/rpm) | 85 | Max. Torque(N.m) | 290 |
Wheelbase(mm) | 3700 | Displacement(L) | 3.7 |
Ground Clearance(mm) | 260 | Fording depth (mm) | 450 |
Max. Speed(km/h) | 78 | Tank Capacity(L) | 140 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
![](https://www.fydftruck.com/uploads/2f7f1f5d62a5dc56d7d7023f56a3be4.jpg)
![](https://www.fydftruck.com/uploads/070ac1bb32ee3f1855b03468ec88a09.jpg)
![](https://www.fydftruck.com/uploads/2223f06b8155ea661e521e525a898d8.jpg)
![](https://www.fydftruck.com/uploads/a5cec564dd3b8c9dd4bceeded24a964.jpg)
![](https://www.fydftruck.com/uploads/0c04673c7d020b86f26a1ce643ea03c.jpg)
![](https://www.fydftruck.com/uploads/88d088bc0559d3e65b34a84db4c2097.jpg)
![](https://www.fydftruck.com/uploads/442603d6695212112e71d406ba804d6.jpg)
![](https://www.fydftruck.com/uploads/13bfc4032d808fd14e5dc6216fb3d2b.jpg)
