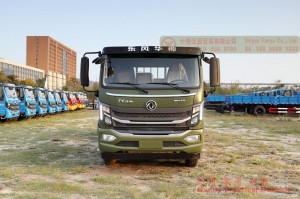

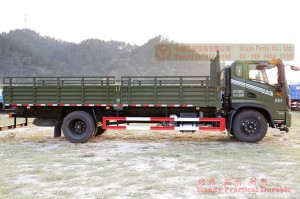

Dongfeng EQ5126XLHL6D Flat-head Training Truck
Product Description
Dongfeng EQ5126XLHL6D flat-head training truck.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×2 |
| Engine | YCY24120-60 |
| Gearbox | Manual five speed |
| Frame | 860×140×70 |

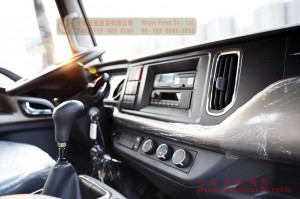

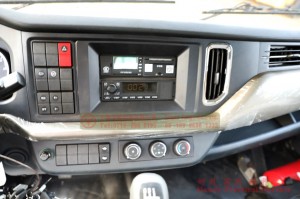

| Cabin | Dongfeng flat-head one-and-a-half-row luxury DV3 cabin, 3 seats |
| Leaf Spring | 7/10 |

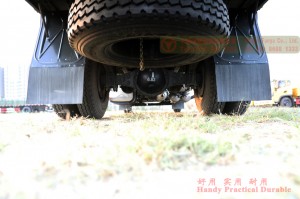

| Tyre | 9.00R20(6+1) |
| Performance Parameter | |||
| Overall Dimension(mm) | 9000× 2480 × 2550(Length×Width×Height) | ||

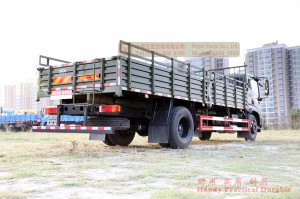

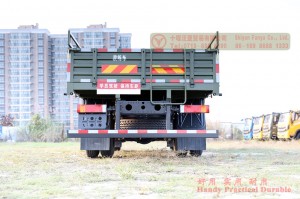

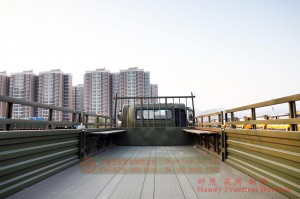

| Truck bed inner dimension(mm) | 6500×2300×550(composite structure, 5 doors) | ||
| Total Mass(kg) | 12400 | Curb Weight(kg) | 4850 |
| Max. Power(kW/rpm) | 88 | Max. Torque(N.m) | 320 |
| Wheelbase(mm) | 5200 | Displacement(L) | 2.36 |
| Wheel track(mm) | 1820/1800 | Cylinder | 4 |
| Approach Angle (°) | 17 | Departure Angle (°) | 18 |
| Ground Clearance(mm) | 255 | Fording depth (mm) | 450 |
| Max. Speed(km/h) | 88 | Tank Capacity(L) | 160 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
