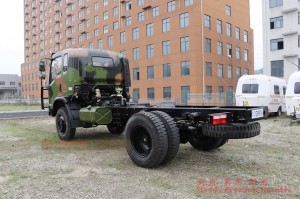

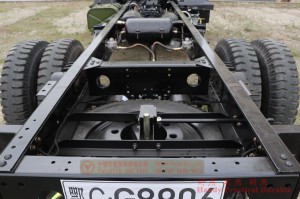

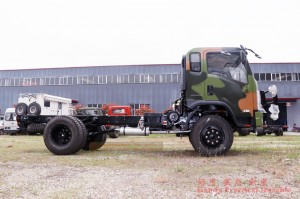

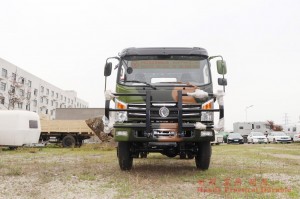

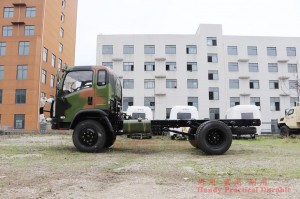

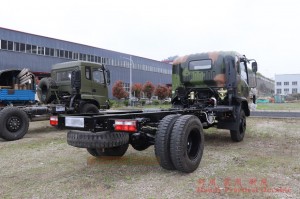

Dongfeng Four drive D912 flat head Off-Road Truck Chassis
Product Description
Dongfeng Four drive D912 flat head Off-Road Truck Chassis can be modified as trucks, dump trucks, vanes, etc.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | Cummins B70 33 |
| Gearbox | Mechanical Manual five speed |
| Transfer case | High-low speed |

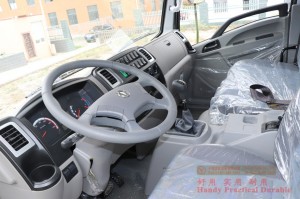

| Cab | Three seats |
| Axle | Max. Load 2.7Tons/7Tons (Front/Rear) |
| Tyre | 9.00-20 (6 + 1) |
| Electrical Appliance |
24V circuit system |
| Performance Parameter | |||
| Overall Dimension(mm) | 6510 × 2160 × 2640(Length×Width×Height) | ||
| Total Mass(kg) | 7910 | Curb Weight(kg) | 4550 |
| Max. Power(kW/rpm) | 140 | Max. Torque(N.m) | 640 |
| Wheelbase(mm) | 3650 | Displacement(L) | 5.9 |
| Approach Angle (°) | 28 | Departure Angle (°) | 27 |
| Ground Clearance(mm) | 265 | Fording depth (mm) | 600 |
| Max. Speed(km/h) | 85 | Tank Capacity(L) | 120 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
